Pallet racking

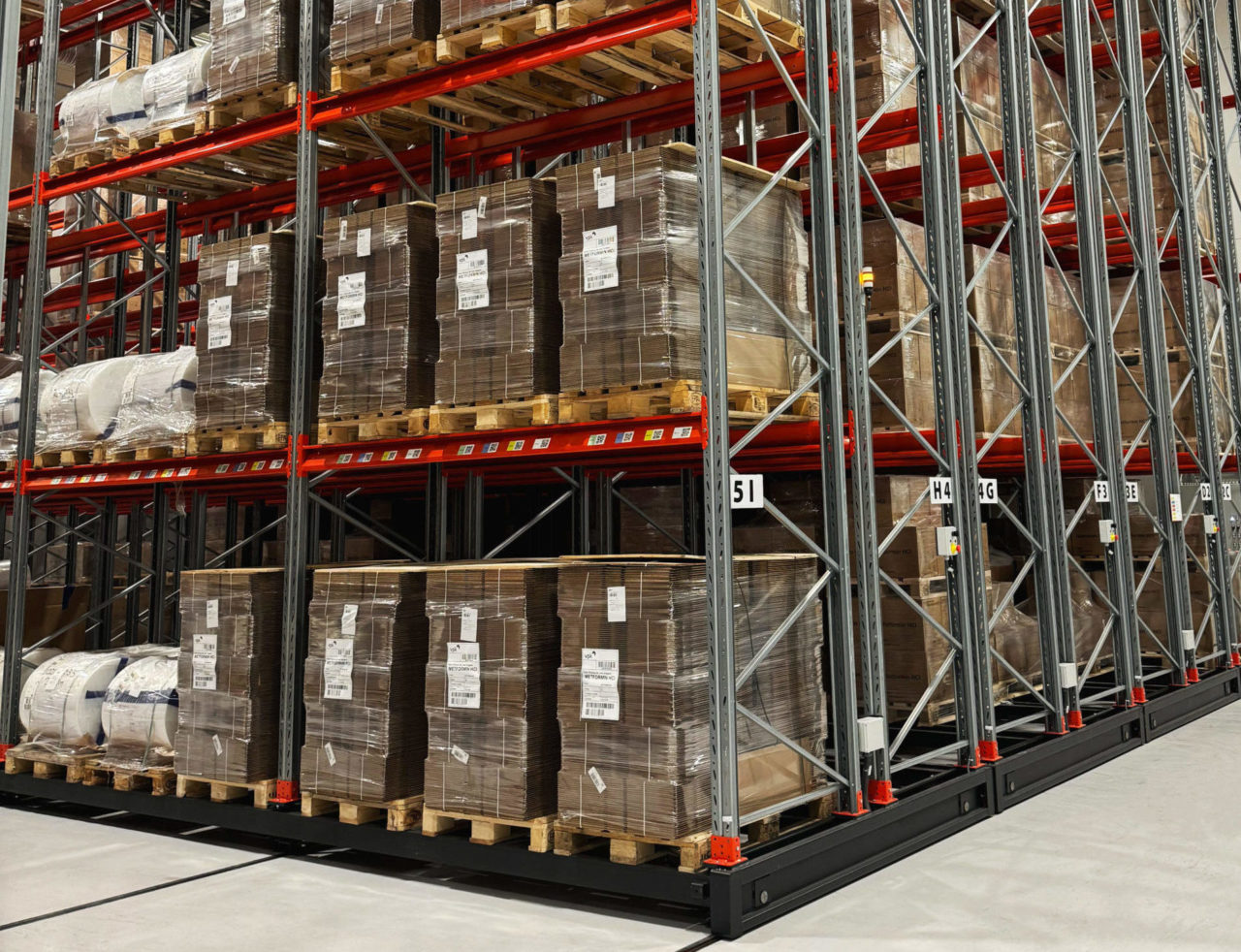

Pallet racking from EAB allows you to create a rational and effective flow, no matter whether you have a small, high, narrow, manual or automated warehouse. We customise and draw up pallet racking based upon your prerequisites, such as pallet dimensions, load, truck aisle, warehouse area and ceiling height.

AS EFFECTIVE AS POSSIBLE

Perhaps you might already have an idea about what warehouse storage solution you need. But if we look at the options to make your warehouse even more effective, then we will also draw up an alternative solution so that you can compare the characteristics of the two proposals.

LOW OPERATING COSTS

Thanks to a durable basic construction and carefully selected materials, your maintenance and operating costs will always be low. The complete pallet racking system is built from just two components frames and beams.

MANY ACCESSORIES TO CHOOSE FROM

There is a wide range of accessories to choose from for our pallet racking, so your warehouse will be as functional and well-adapted as possible.

pallställage

A FULL RANGE OF PRODUCTS

EAB has complete range of standard pallet racking and together with our wide range of accessories you can easily create a functional and rational warehouse. This applies regardless of whether you have a small warehouse, high narrow aisle warehouse or fully automated crane warehouse.

Naturally, our pallet racking meets the latest European standards for pallet racking, with the correct markings, and meet our customers’ needs for solid and sustainable warehouse storage solutions. The end brace for the frame is produced from square steel tubes which provide a strong and very stable frame for high section loads. The accessories are also developed to comply with the latest European standards and marking requirements.

pallställage från EAB med stor flexibilitet

A CUSTOMISED SOLUTION THAT SUITS YOU

With our own in-house design team and production department you have the option for flexibility and to adapt your solution. Regardless of whether it is pallets, bales or tyres you need to store, we will design and customise your pallet racking to suit the purpose.

gavlar och balkar för pallställage

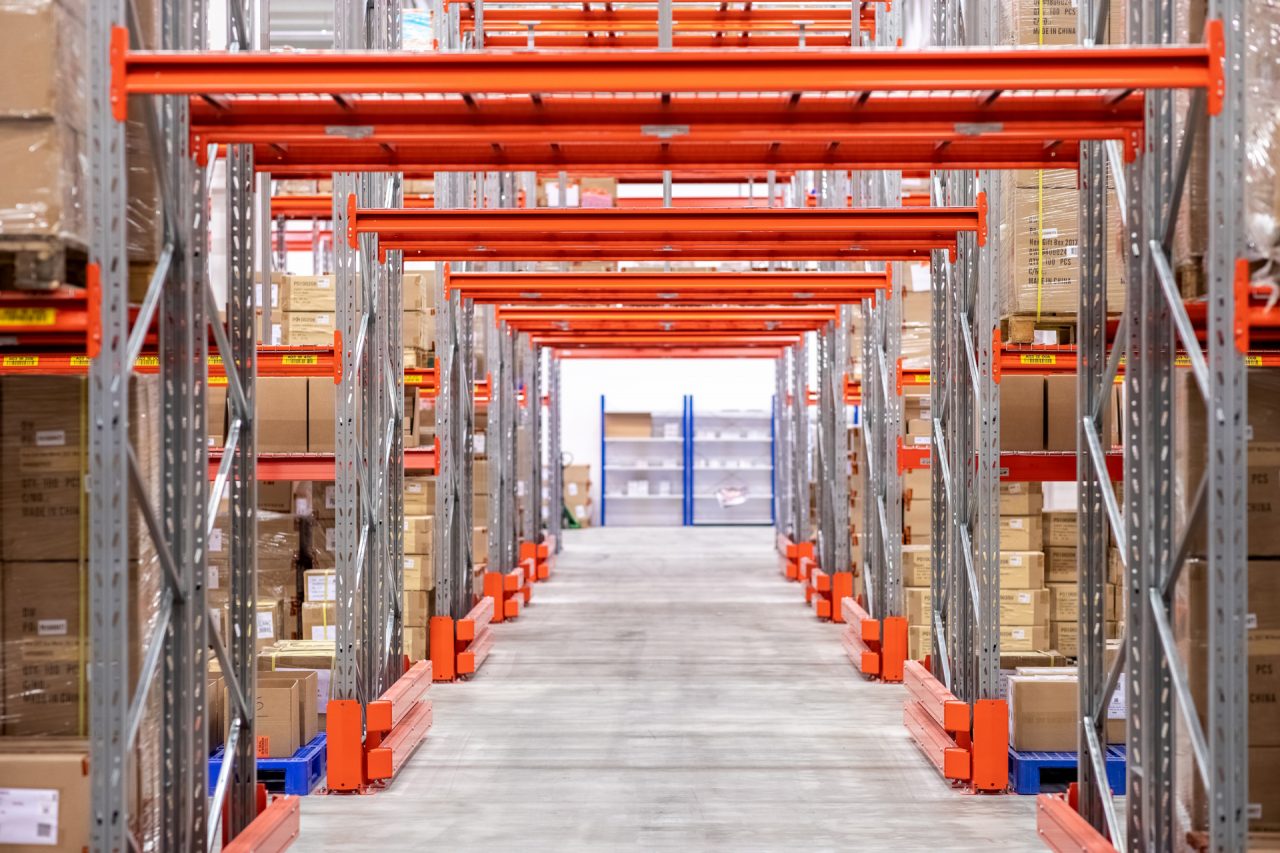

GALVANISED FRAMES

EAB’s pallet racking is supplied with galvanised frames. Beams and other accessories are lacquered orange using a durable powder coating.

LOW OPERATION AND MAINTENANCE COSTS

No matter what the finished solution looks like, you will always benefit from an EAB pallet racking system. Most important though, are the low maintenance and operating costs, thanks to a durable basic construction and carefully selected materials. The complete pallet racking system is built from just two components frames and beams. Simple, safe and reliable.

pallställage
Pallställ sett från en entresol

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Read more about our promise: Built to Last®

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read more about why our products last

Warehouse safety

At EAB, safety is present from the project start and ensures that the warehouse becomes a workplace what is as safe and sustainable as possible.

Read more about warehouse safety

Reference case

Our customers are found within most sectors where large volumes of products are managed and stored. Here are some of our most recent clients and the solutions have we created together with them.

LOHILO Foods has produced ice cream under the brand name Alvestaglass since 1979. The company has gone from only operating on a local level around the town of Alvesta in the region of Småland, to becoming a strong and popular brand among Swedish ice cream lovers. But the saga does not end there. Because in recent years they have started new and healthier alternatives, which are selling quite well both internationally and among modern health-conscious consumers.

Read full case

The Ellos Group is a leading Nordic e-commerce group within the fashion and home furnishing sectors, with e-commerce sites Ellos, Jotex, Stayhard and Homeroom. With its headquarters in Borås, the company has its roots deep in the heart of the Swedish textile industry.

The Ellos Group was founded in 1947 by businessman Olle Blomqvist and its first post order catalogue was sent out back in 1953. Ellos was even a pioneer in digital solutions and its first online shopping solution was launched in 1999.

Read full case

AKS Lining Systems is a company with excellent growth and is in Cape Town, South Africa. They manufacture thermoplastic casting accessories in their own factory and currently export their product to more than 30 countries around the world.

Read full case

Specification

Technical details - Pallet racking Alfa
DIMENSIONSLOADING
AFrame, height1500-8000 mm
BFrame, depth500, 800, 1100 mm
CUpright, width90, 110, 100, 150, 200, 250, 300, 400 mm8000, 12000, 14000, 18000 kg
DBeam, lenght / height, (for short side handled pallet)950 mm / Z100 mm
1850 mm / Z100 mm
2300 mm / Z100 mm
2750 mm / Z100 mm
2750 mm / Z115 mm
2750 mm / Z140 mm
3600 mm / Z160 mm
3600 mm / Z160 mm
950 mm / Z100 mm
1850 mm / Z100 mm
2300 mm / Z100 mm
2750 mm / Z100 mm
2750 mm / Z115 mm
2750 mm / Z140 mm
3600 mm / Z160 mm
3600 mm / Z160 mm
Beam, length / height, (for long side handled pallet)1350 mm / Z100 mm
2650 mm / Z115 mm
1x1000 kg
2x1150 kg
Technical details - Pallet racket Omega
DIMENSIONSLOADING
A
Frame, height1000 - 10000 mm
BFrame, depth500, 800, 1100, 1250, 1500 mm
CUpright, width90 mm10000 kg, 14000 kg
Upright, width110 mm20000 kg, 25000 kg
DBeam, length/height, (for short side handled pallet)950 mm / Z100 mm
1850 mm / Z100 mm
2300 mm / Z100 mm
2750 mm / Z100 mm
2750 mm / Z115 mm
2750 mm / Z140 mm
3600 mm / Z160 mm
3600 mm / Z160 mm
1x1000 kg
2x1000 kg
2x1000 kg
3x550 kg
3x750 kg
3x1000 kg
4x800 kg
4x1000 kg
Beam, lenght / height, (for long side handled pallet)1350 mm / Z100 mm
2650 mm / Z115 mm
1x1000 kg
2x1150 kg
European Standard

EABs pallet racking fulfils the European standard for pallet racking, with designations SS-EN 15512, SS-EN 15620, SS-EN 15629, and SS-EN 15635.

Surface treatments

EABs pallet racking is supplied galvanised. Beams and other accessories are painted orange using a durable powder coating.
