Slide-out unit EAB Built to last

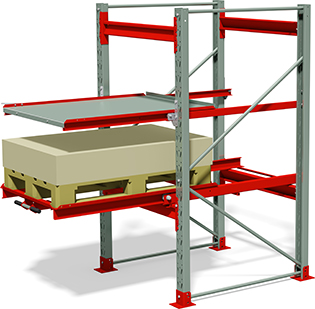

Slide-out unit

The slide-out unit is an ergonomic solution for picking items directrly from pallets stored in a pallet racking. Place the pallet onto the unit with a pallet truck. Slide out the unit to get access for items stored in the pallet and slide back again for compact storage.


Our slid-out unit is an ergonomically friendly solution for order picking from pallets and it also complies with all safety requirements in the European standard for pallet racking, SS-EN 15620 and 15635.


The slide-out can be fitted to the beams or directly on a concrete floor. The unit has a lock engagement device that is released when you pull the handle on the beam model or press down the handle on the floor model with your foot.


Using a low-built slide-out unit, you can reduce the distance between the pallet racking levels and thus compress your warehouse.

Utdragsenhet golvmodell

The slide-out unit is painted in a wear resistant powder coating (the standard colour is orange) and is supplied complete with attachment brackets for fitting on beams, or alternatively with a drawbar and anchor bolts for concrete floors.

EAB_slutbild_ingenlogga-Frontendhigh built to last

Made in Smålandsstenar, Sweden

All design, production and development take place under our own roof in Smålandsstenar. This allows us to fully adapt dimensions, appearances and automatics to suit your specific circumstances.

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Read more about our promise: Built to Last®

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read more about why our products last

Warehouse safety

At EAB, safety is present from the project start and ensures that the warehouse becomes a workplace what is as safe and sustainable as possible.

Read more about warehouse safety


Technical data - Slide out unit
Width850 mm
Depth1260 mm
Max pullout800 mm
Height85 mm
Max load700 kg
Extension set, height100 mm
Slide-out unit EAB
Technical data - Slide out shelf
Width900 mm
Depth1150 mm
Max pullout760 mm
Height35 mm
Max load300 kg
Slide-out unit EAB
