Cantilever racking

EAB’s range of steel cantilever racking is a Nordic market leader, and we can offer a large number of combination options. Naturally, our cantilever racking is very durable and stable with a long lifespan.

COMPLIES WITH ALL SAFETY REQUIREMENTS

EAB’s cantilever racking meets all safety requirements in accordance with the European Supplier Code FEM 10.2.09, which includes instructions for choice of materials, dimensions, testing, assembly and labelling.

INDOOR AND OUTDOOR USE

EAB’s cantilever racking is lacquered in durable powder coating. For outdoor use, a fully hot-dip galvanised cantilever racking is available. You can also add on a roofing plate from us, which is adapted to suit Nordic weather conditions.

SUPPLIED COMPLETE

The pallet racking is supplied complete with uprights, feet, arms, brace sections, screws and nuts. Using the enclosed instructions, the product is simple to assemble. An easy-to-read load tolerance sign accompanies the shipment.

A FAVOURITE AMONG BUILDER’S MERCHANTS

We primarily sell cantilever racking to builder’s merchants and builders. The racking is extremely flexible and there are many combination options to provide optimum timber storage. The cantilever racking can be single or double sided for light or heavy loads and can also be used for stacking long goods (such as rods).

BUILT TO LAST.®

Sustainability is EAB’s hallmark. Our accuracy and our quality perspective are included in everything we do, from the choice of materials, to manufacturing, delivery and assembly. Sustainability also includes the relationships we have with our customers, suppliers and colleagues.

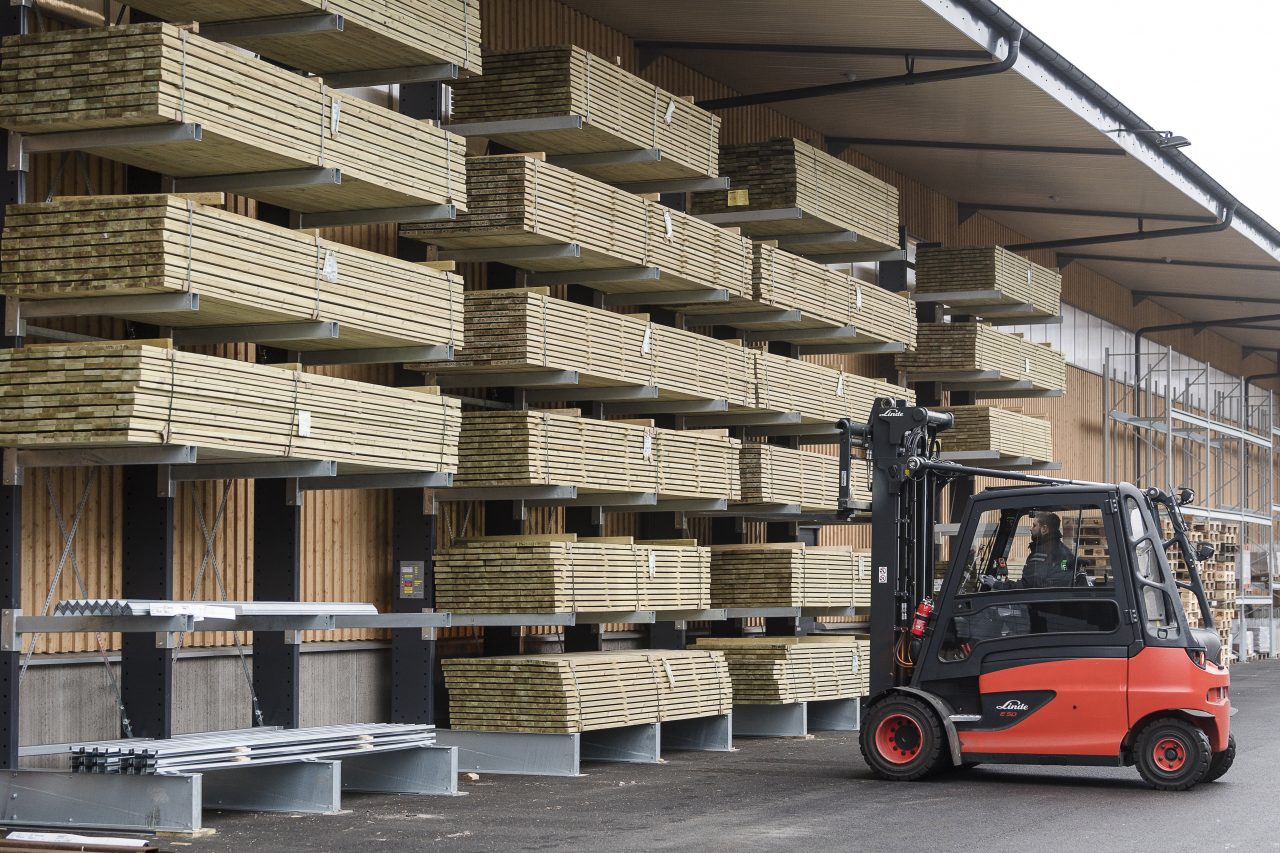

Narrow cantilever racking with roof

Narrow cantilever racking with roof

Narrow cantilever racking

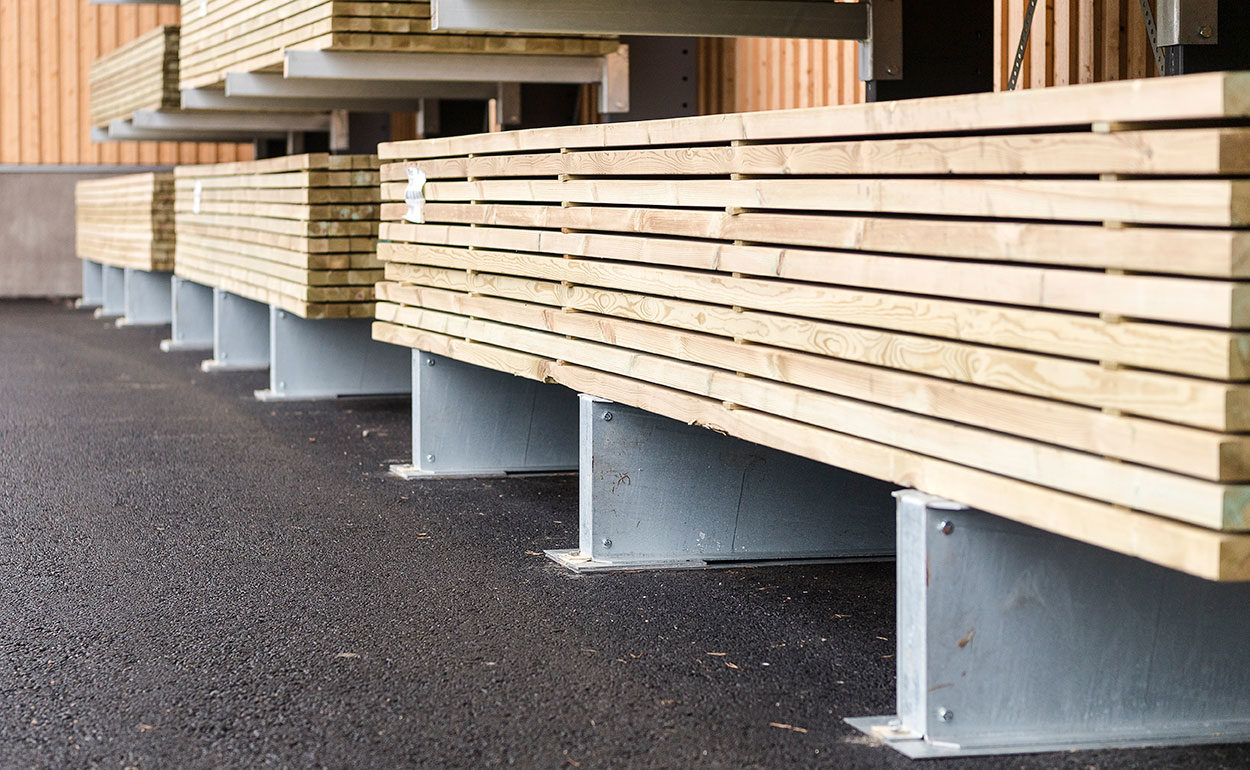

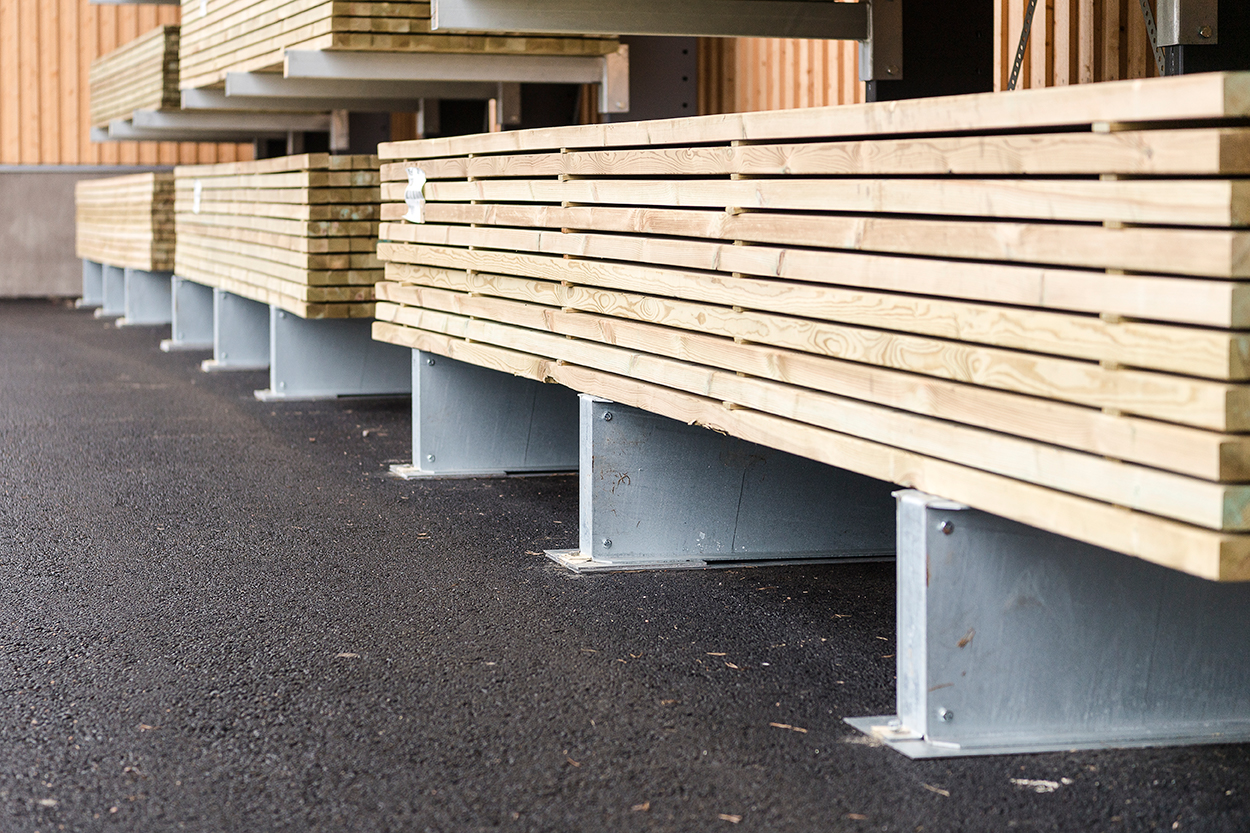

Cantilever racking on asphalt

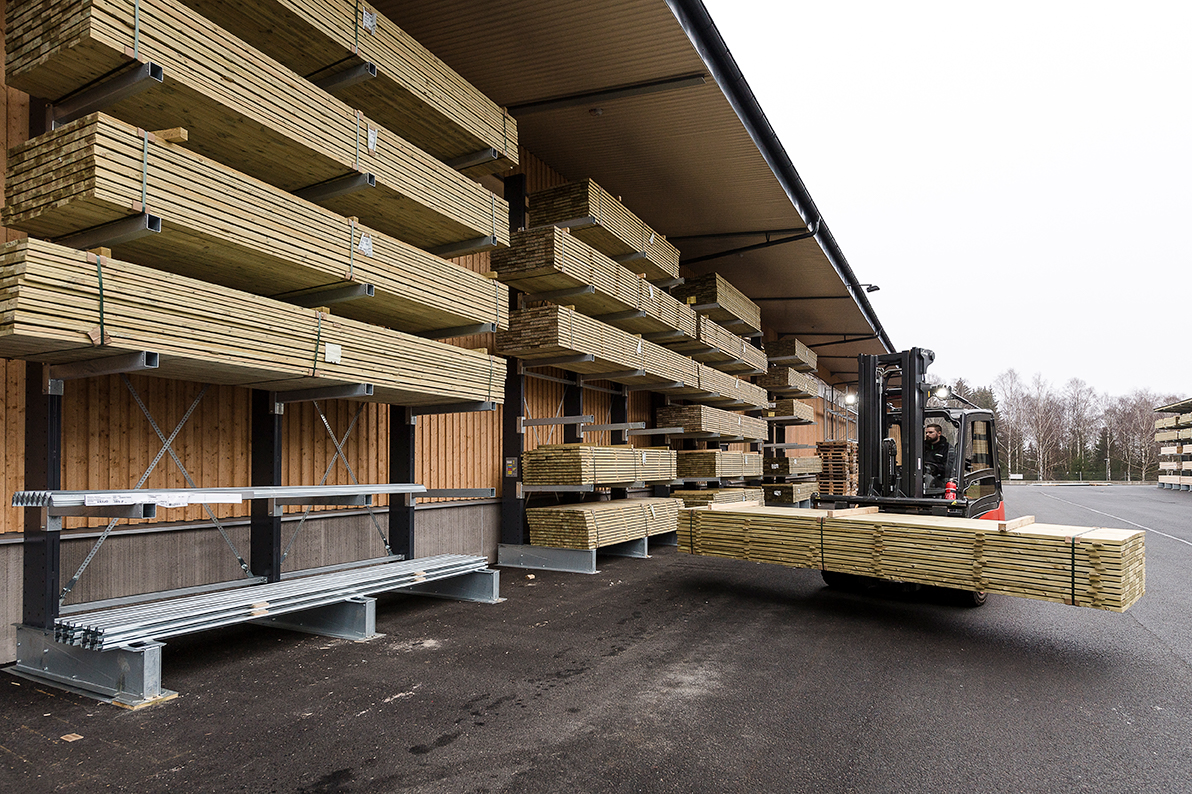

Cantilever racking outside

EAB_slutbild_ingenlogga-Frontendhigh built to last

Made in Smålandsstenar, Sweden

All design, production and development take place under our own roof in Smålandsstenar. This allows us to fully adapt dimensions, appearances and automatics to suit your specific circumstances.

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read about more why our products last

Warehouse safety

At EAB, safety is present from the project start and ensures that the warehouse becomes a workplace what is as safe and sustainable as possible.

Accessories

Draagarmstellingen op verplaatsbare platformen

Cantilever racking on mobile carts

Arm stop, tubular cantilever arm

Arm stop

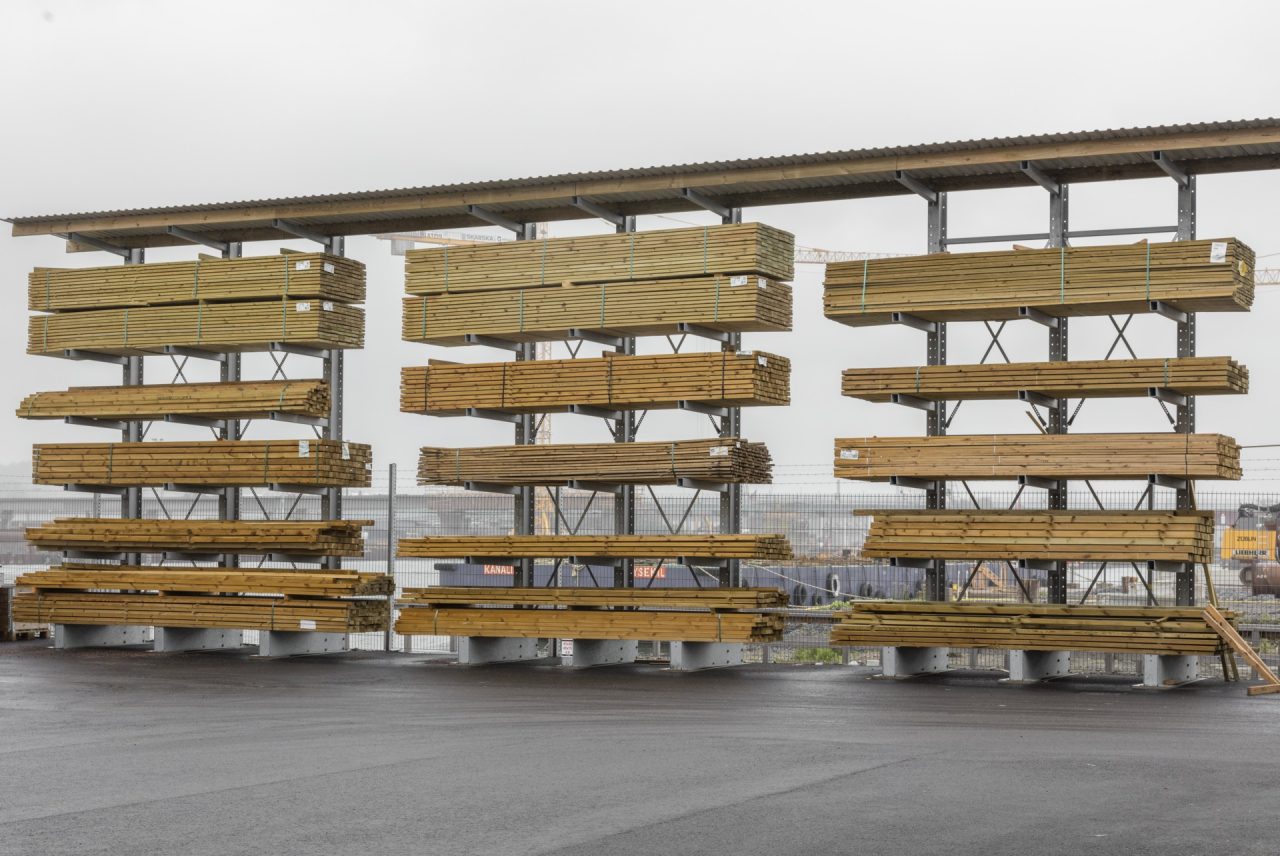

Cantilever racking with roof

Specifications

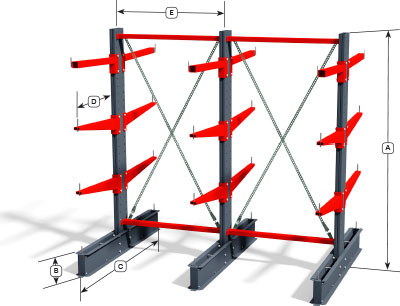

Technical data - Light duty cantilever racking


A	Upright, height	2000, 2500, 3000, 3500, 4000 mm
	Upright, width x depth	60 x 220 mm
B	Foot, height	220 mm
C	Double foot, length	1420 mm, 2220 mm
	Single foot, length	860 mm, 1260 mm
D	Arm, length	600 mm, 1000 mm
	Arm, movable	c/c 50 mm
E	Section, length	c/c 1000, 1250, 1500, 2000 mm
	Arm stop, height	80 mm
	Load per arm	300, 500 kg

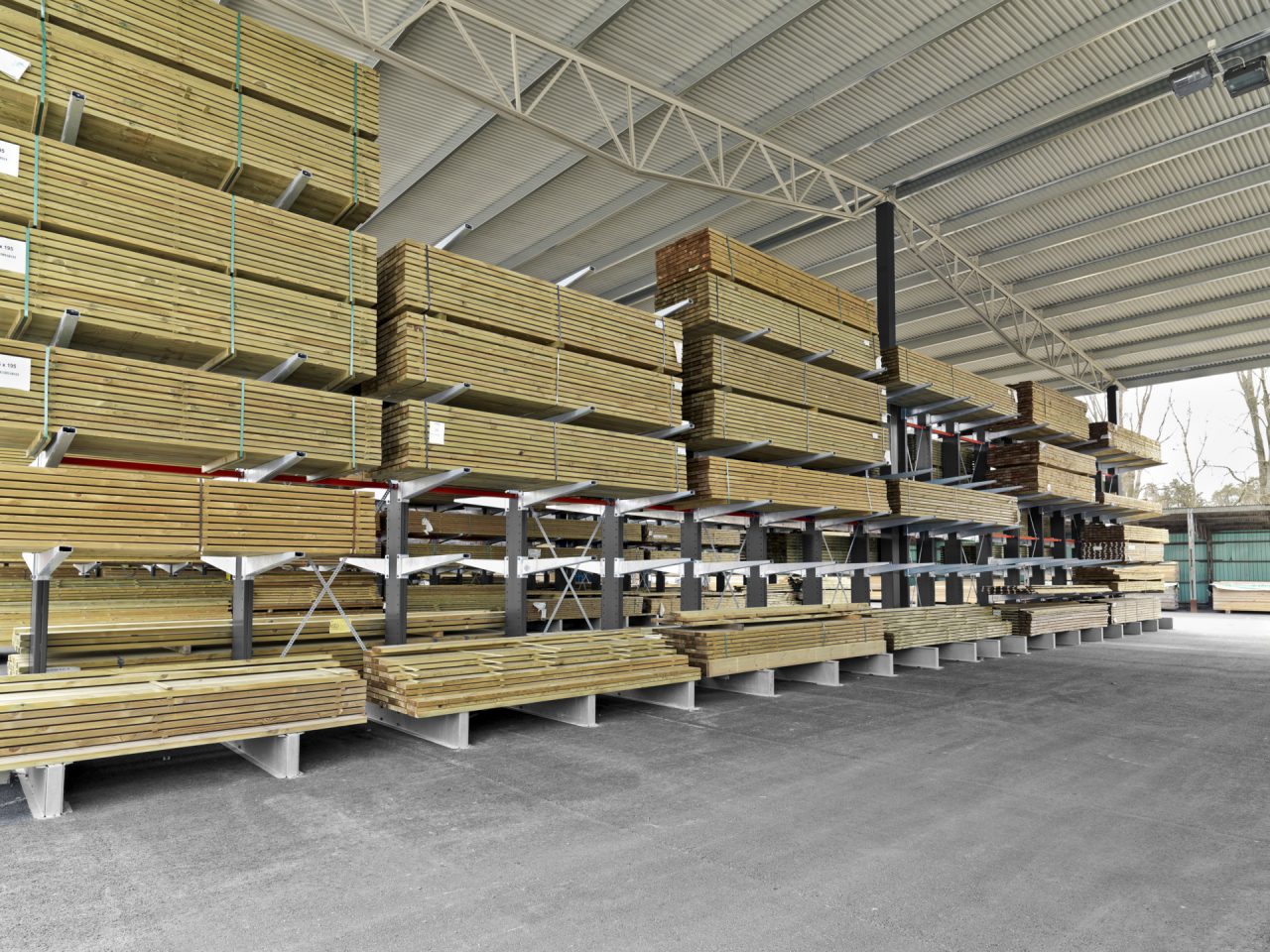

Technical data - Heavy duty cantilever racking


A	Upright, height	3000, 4000, 5000, 6000 mm
	Upright, width	80 mm
	Upright, depth	265 mm, 350 mm, 400 mm
B	Foot, height	285, 325, 370 mm
C	Double foot, length	1285 – 3410 mm
	Single foot, length	835 – 1960 mm
D	Arm, length	500, 750, 1000, 1250, 1500 mm
	Arm, movable	c/c 100 mm
E	Section, length	c/c 1000, 1250, 1500, 2000, 2500 mm
	Arm stop, height	100 mm
	Load per arm	500, 750, 1000, 1250, 1500 kg

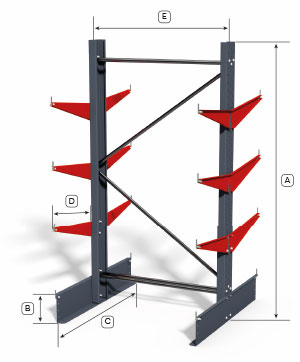

Technical data - Light Arm


A	Upright, height	2000, 2500 mm
	Upright, width & depth	60 x 150 mm
B	Foot, height	200 mm
C	Double foot, length	1150 mm
	Single foot, length	700 mm
D	Arm, length	500 mm
	Arm movable	50 mm
E	Section, length	800, 1100, 1250, 1500 mm
	Arm stop, height	45 mm
	Max load per arm	150 kg
	Max load per upright and side	750 kg

Documents

Product sheet Cantilever racking Light arm

Product sheet Cantilever racking

Assembly instructions Cantilever racking Heavy duty

Assembly instructions Cantilever racking Light arm

Assembly instructions Cantilever racking Light duty

European Standard

Surface treatments

EAB’s cantilever racking is lacquered in a durable powder coating. Standard colours: dark grey frame, orange arms. For outdoor use, we recommend a fully hot-dip galvanised cantilever rack.
