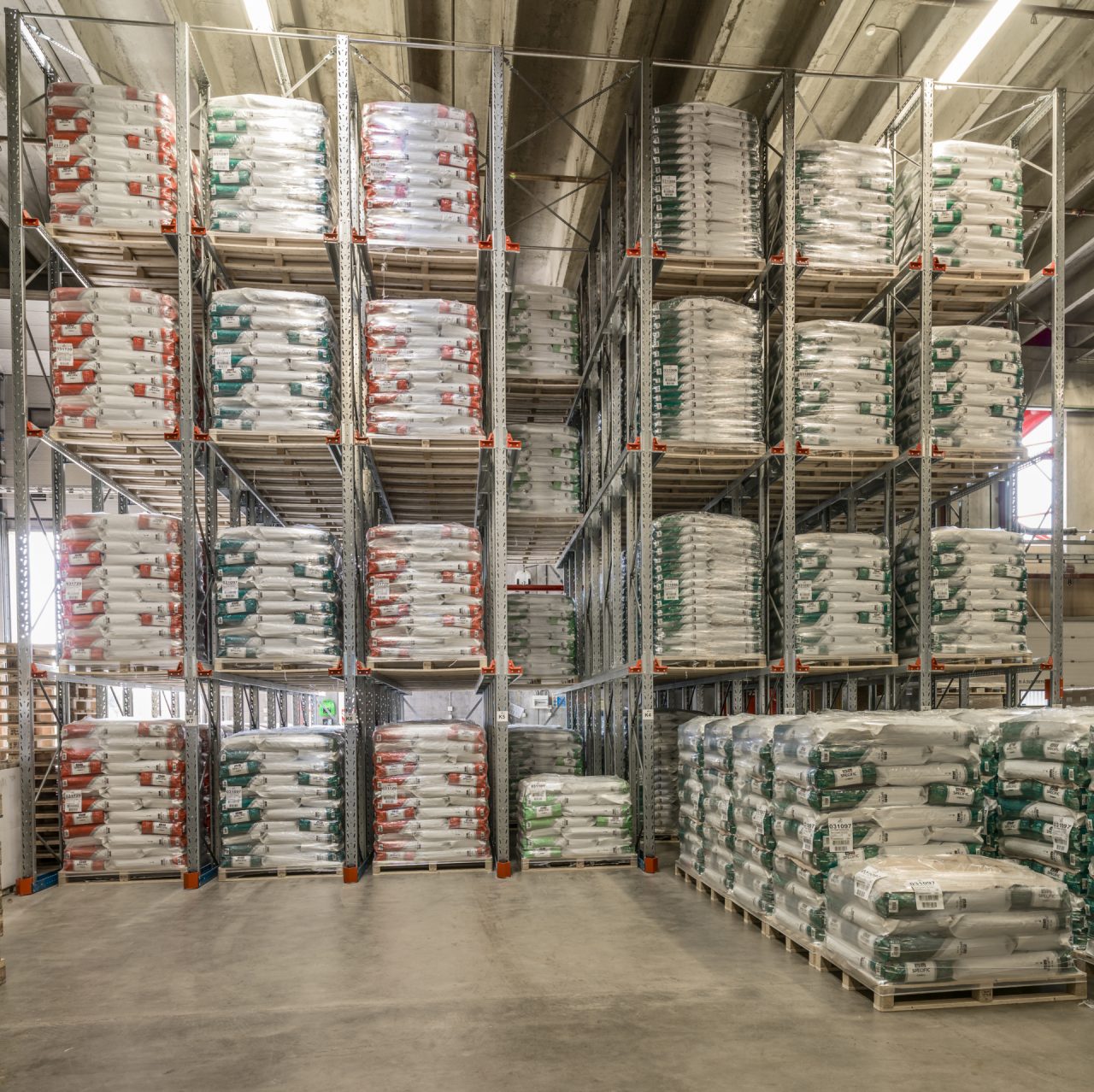

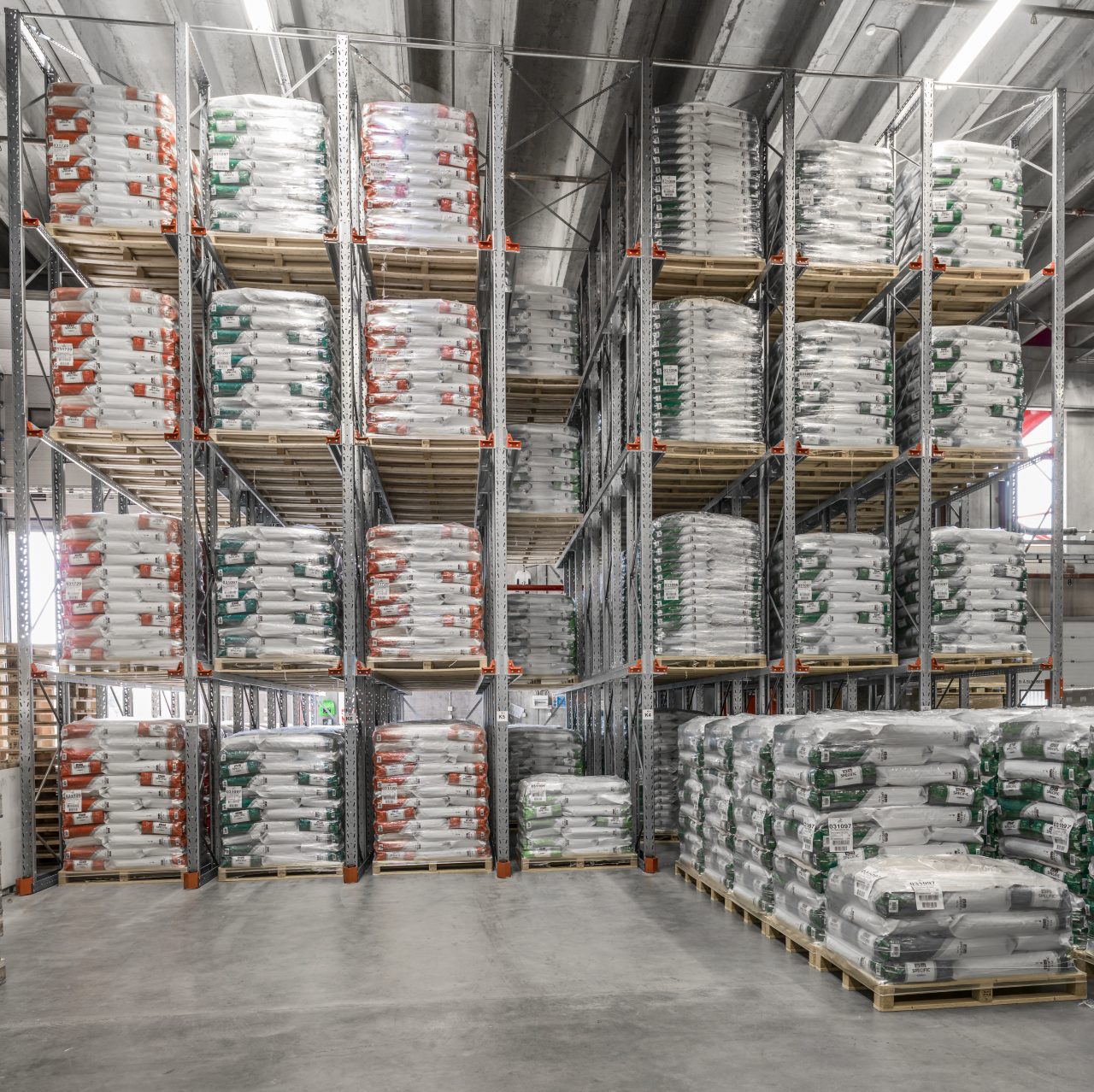

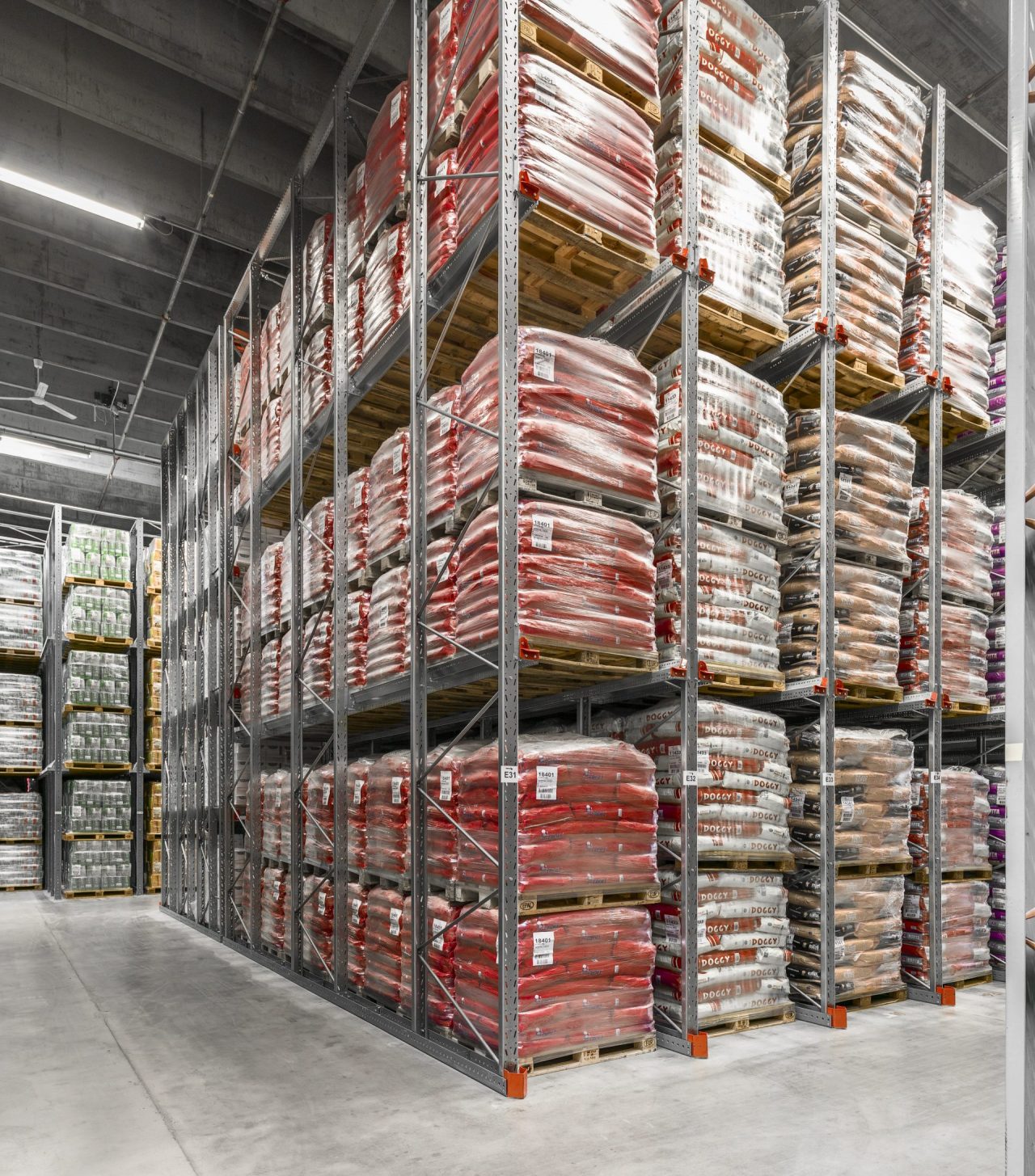

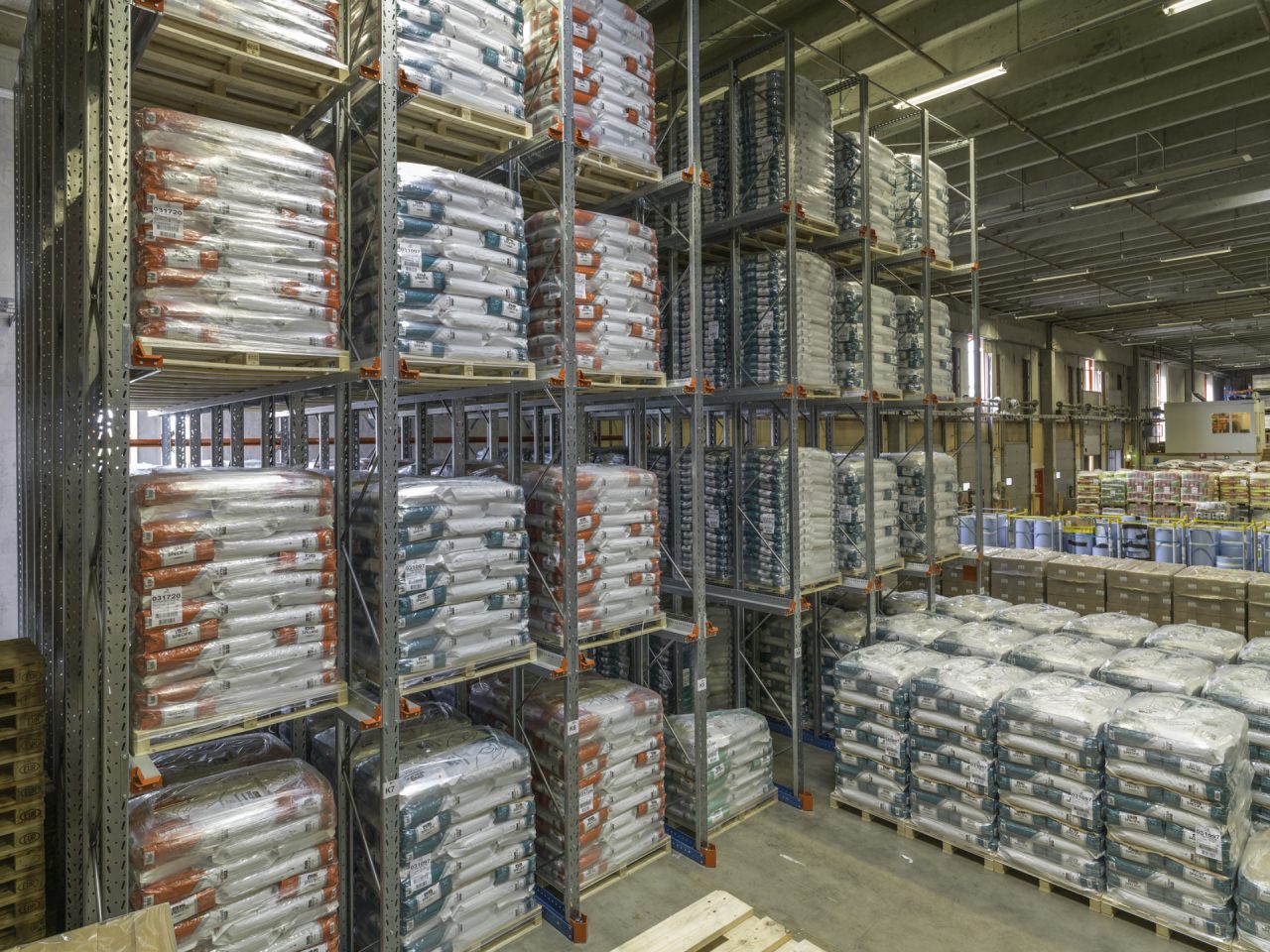

Cubic drive-in pallet racking

EAB’s Cubic Drive-In pallet racking system gives you a higher utilisation rate of up to 80% of your warehouse area, because the full cubic meter are used for storage. Drive in racking is built to the FILO principle and pallets are loaded top down in accordance to first in, last out.

STRONG ATTACHMENT

The bracket is attached to the post using bolts, which provides a very strong attachment The pallet support hooks onto the bracket and is locked in place using bolts on both the top and bottom.

CLEVER GUIDE

A guide that facilitates placement of the pallet, while protecting the front of the pallet support is available as an option. The guide is attached to the front bracket.

PALLET SUPPORTS AND BRACKETS

Pallet supports, and brackets are adapted to suit different amounts of load overhang. The pallet support is designed so that the pallet is automatically positioned in the right location.

A COST-EFFECTIVE SOLUTION

Drive-in pallet racking is a type of manual pallet handling for large volumes of goods. Handling is somewhat more time consuming than conveyors and Radioshuttle but is just as area efficient. Its simplicity means it is highly cost-effective.

A reinforced bottom profile with guide for forklift trucks is available as an option. The bottom profile is used for protecting the racking posts against impact.

MAXIMISE USE OF THE WAREHOUSE AREA

EAB’s Cubic drive-in pallet racking means you can store goods on pallets with a utilisation rate of up to 80 % of the warehouse area. Both the use of the floor area and ceiling height are maximised. Pallets are managed from the long side in accordance with the first-in, last-out principle.

Drive-in pallet racking

EAB_slutbild_ingenlogga-Frontendhigh built to last

Made in Smålandsstenar, Sweden

All design, production and development take place under our own roof in Smålandsstenar. This allows us to fully adapt dimensions, appearances and automatics to suit your specific circumstances.

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Warehouse safety

At EAB, safety is present from the project start and ensures that the warehouse becomes a workplace what is as safe and sustainable as possible.

Accessories

Floor installed pallet stop

Tetning og beskyttelse med gjennomføringsbeskyttelse

Rear channel pallet stop

Bracket with guide

Sleeve footplate

Ondersteunend onderprofiel met heftruck geleiding EAB

Reinforced bottom profile with entry guide

Specifications

Technical data


A	Frame height	1500-1800 mm
B	Upright distance	c/c 500, 800, 1100, 1250 and 1500 mm
C	Upright, width	90 mm, 110 mm

D	Section 1350, width	1350 mm (clearence between uprights)
	Section1400, width	1400 mm (clearence between uprights)
	Section 1450, width	1450 mm (clearence between uprights)
	Section 1500, width	1500 mm (clearence between uprights)
	Section 1550, width	1550 mm (clearence between uprights)
	Clearance between pallet support	1060 mm (clearence between bolts 1050 mm)

E	Pallet suport, height	75 mm
F	Bottom profile, height	100 mm
	Bottom profile, thickness	5 mm

Documents

Product sheet for Cubic drive-in pallet racking

European Standard

EAB’s Cubic drive-in pallet racking meets all safety requirements in the Nordic standard INSTA 252 and Swedish standard SS 2644. All brackets are screwed to the post and stabilised using braces fitted to both the back and the top.

A guide that facilitates placement of the pallet, while protecting the pallet support against impact is available as an option. The guide is attached to the front bracket.

Surface treatments

Posts and braces are galvanised. Sleeve footplates and bottom profiles are lacquered. Orange is the standard colour. Pallet supports, brackets and top profiles are galvanised.
