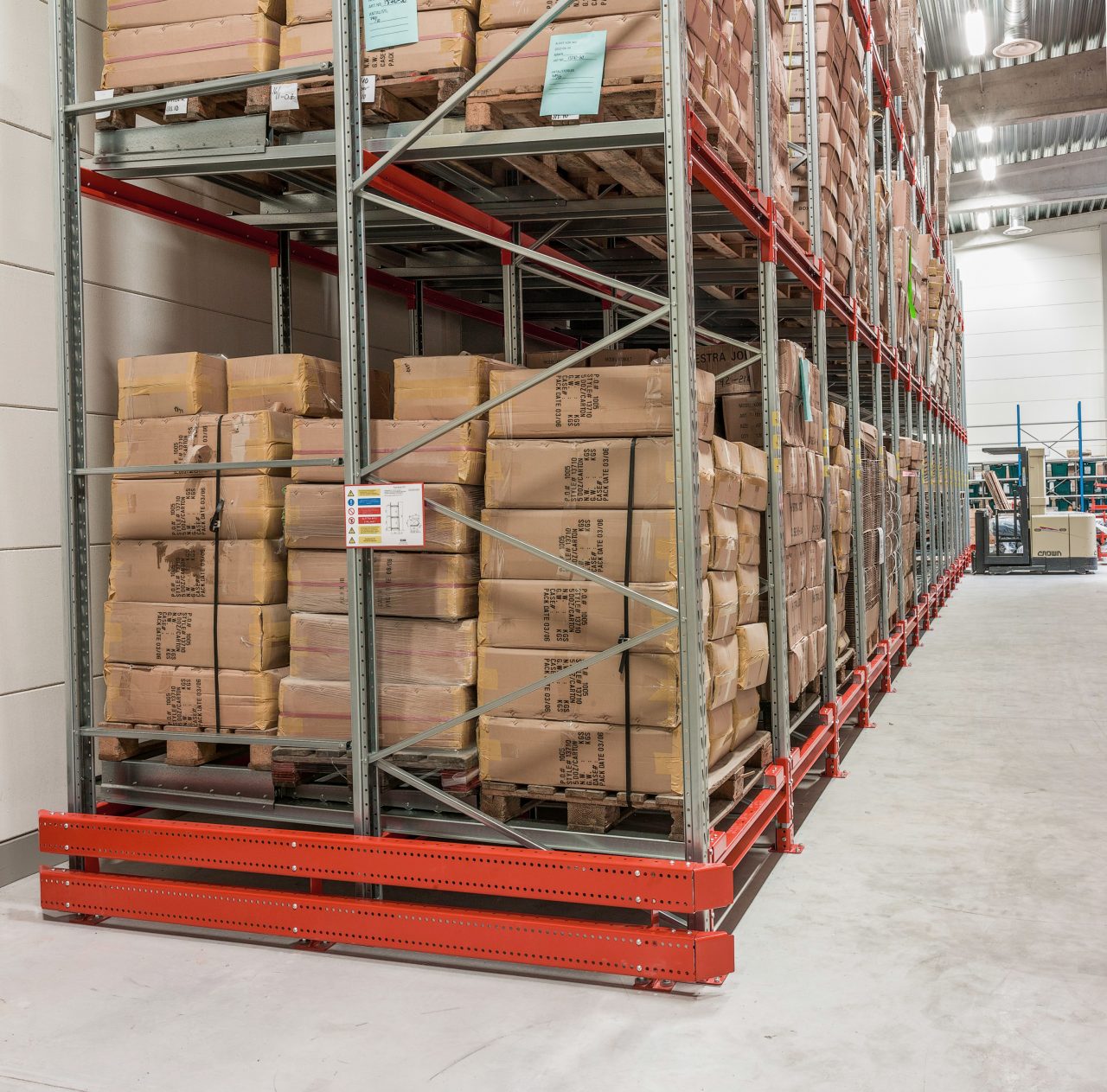

Push back GTS racking

GTS, Gravity Trolley System, is EAB’s push-back system where pallets are stored long side. Push-back GTS is a way of optimising your warehouse and your storage space. If you have many low quality pallets, which is often the case in the industries such as the fruit industry, then push-back is a more forgiving system than pushback systems on rollers.

USER-FRIENDLY SYSTEM

GTS push-back is a user-friendly system for FILO storage, which can deal with different types of pallets.

MULTIPLE WHEELS AND SLIP-RESISTANT

The trolley has slip-resistance which prevents the pallet from sliding off and there are multiple wheels for trouble free operation.

Turnkey solution

Push Back GTS is a turnkey solution with frames, beams, carts and rails. EAB is the supplier of all components in the systems which guarantees a solid functionality with outstanding quality. The accompanying installation instructions allow for easy assembly.

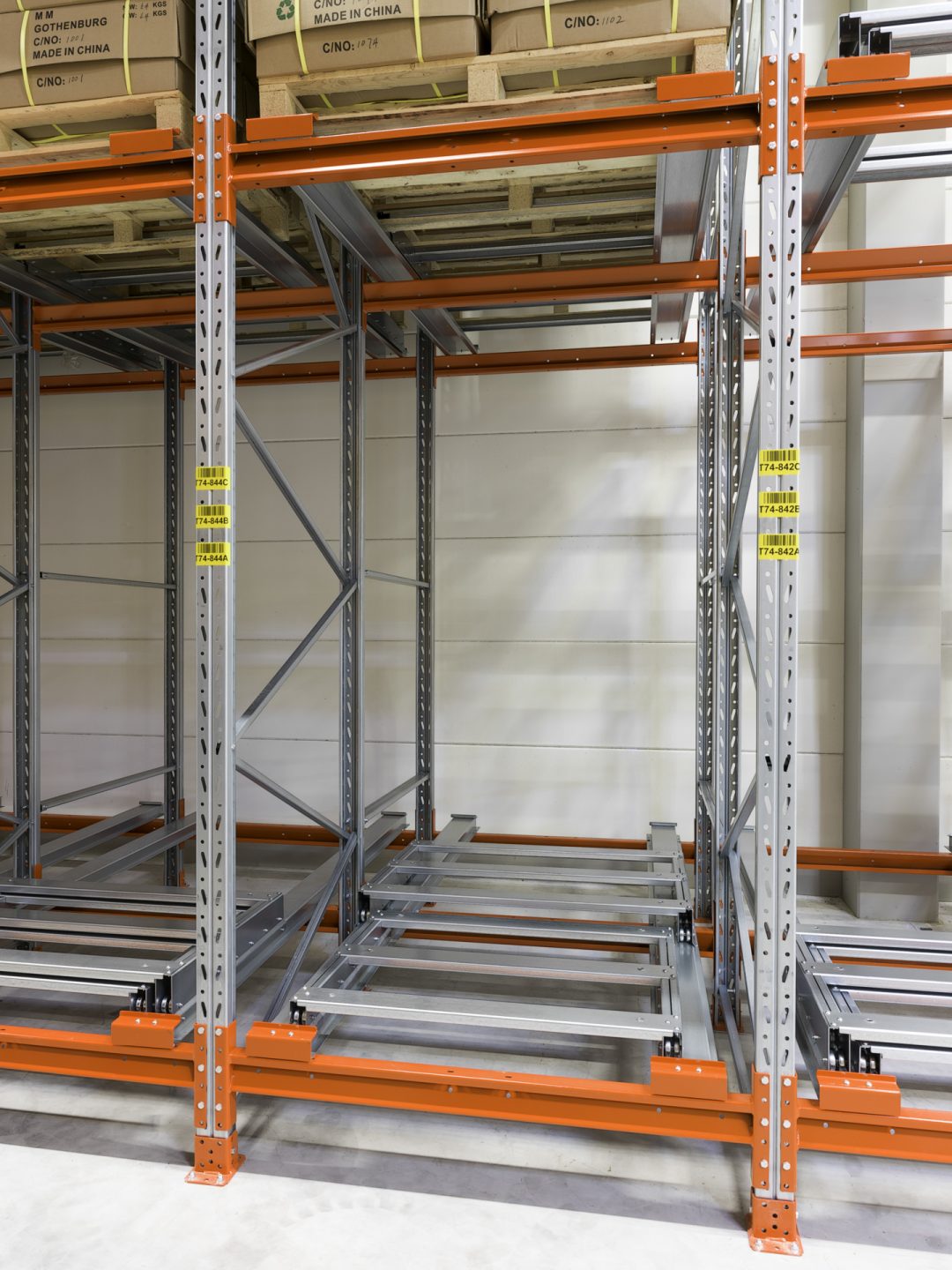

Push Back GTS (5)

If you have many low quality pallets, which is often the case in the industries such as the fruit industry, then cart based push-back solution is more forgiving than roller based pushbacks. GTS push-back is a user-friendly system for FILO storage, which can deal with different types of pallets. Push back is also good for when you have overhanging or fragile goods on pallets. Storage of up to 5 pallets deep is possible on a push back solution. The trolley is slip-resistant which prevents the pallet from sliding off and there are multiple wheels for trouble free operation.

SMART SOLUTION

Optimise your warehouse without compromising effective stock management.

push-back
Push-back
EAB fabrik

Made in Smålandsstenar, Sweden

All design, production and development take place under our own roof in Smålandsstenar. This allows us to fully adapt dimensions, appearances and automatics to suit your specific circumstances.

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Read more about our promise: Built to Last®

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read more about why our products last

Warehouse safety

At EAB, safety is present from the project start and ensures that the warehouse becomes a workplace what is as safe and sustainable as possible.

Read more about warehouse safety

Specifications

European standard

EAB’s Push Back solution complies with all safety requirements in the European Standard for warehouse storage solutions with designations SS-EN 15620 and 15635.

Surface treatments

Carts and rails are galvanised. The pallet rack is supplied according to the EAB standard, with galvanised frames and orange painted beams.
