Side hung doors and steel doors

EAB’s side hung doors and hot dip galvanized steel doors are primarily intended for industrial buildings and machine halls. They are used as industrial doors, warehouse doors and workshop doors. With their robust design the side hung doors will also come into their own as interior doors.

LOW MAINTENANCE, HIGH FINISH

The solid design makes EAB’s side hung doors very durable and guarantees a long life with minimum maintenance. The fact that there is a high-quality finish is obvious.

BUILT TO LAST

Frame of hot dip galvanised tubular profiles gives the door leaf extremely good stability. Hinge and bracket for other fittings are welded to the frame structure.

A PROMISE WITH A 10-YEAR GUARANTEE

We know that our doors last and that they deliver what we promise. This is why a 10-year guarantee is always included regardless of the solution you choose.

Function for all

Steel doors are built with a frame of hot dip galvanised tubular profiles that give the door leaf extremely good stability. The side hung door retains its functionality even if the door cladding is damaged. Hinges and brackets for other fittings are welded to the frame structure.

When function meets design

At EAB we create concrete proof every day that a durable and functional door does not need to be boring. With 50 years’ experience in door manufacturing, we know the art of combining design, function and durability. Read more about our Designline concept, which gives you unlimited options to customise your door.

Customise your door

Door leaves and cladding

The frames on our fire doors are comprised of welded, galvanised square profiles and are clad with Aluzinc or polyester lacquered profiled sheet. The steel cladding is screwed onto the door frame using our own special screws, which means that steel sheet is easy to replace if it becomes damaged.

Non-insulated to high insulated

Insulation is available as interleaved mineral wool insulation with a thickness of 40 mm. For those requiring a high insulation door, we make them with a 5 mm thermal break and interleaved mineral wool insulation. We call the high insulation type Thermo 45. Naturally, you can also choose a fully non-insulated solution with steel sheet only on the exterior.

Let the light in with a glazed door

Choose among one or more glazed sections, or why not even a fully glazed door for optimal light transmission. The folding doors are supplied with a D4-18 insulated pane, with a U-value of 1.1, which is fitted in heavy-duty strips of naturally anodised aluminium. Other types of glazing can be fitted upon request.

Choose surface treatment for your door

EAB offers three types of surface treatment for your side hung door:

  • Option 1: Hot dip galvanised door leaf frame and steel cladding.
  • Option 2: Hot dip galvanised door leaf frame with polyester lacquered steel sheet cladding as per separate range of colours.
  • Option 3: Paint treatment on hot dip galvanised door leaf frame and steel sheet cladding as per separate paint program.

What colour suits you and your business?

The color of the door can change the look of your building – we offer several different colors as standard.



inspirational images

slagportar och vikprotar
slagportar och vikportar
slagport
slagportar och vikportar
slagportar och vikportar

HOW MUCH DOES A DOOR COST?
FIND OUT HOW MUCH YOUR SIDE HUNG DOOR COSTS

Quotation
EAB Västbo Transp -3

CE marked industrial doors that fulfil requirements

EAB’s folding doors are CE marked in accordance with the EU Construction Products Regulation and the EU Machinery Directive. All products fulfil the requirements in Swedish door standard SS-EN 13241-1.

Door plus – For more options

When you turn to EAB, you will not receive just a door or a door solution. We will help you every step of the way, from concept to fully assembled product, and with a design team and production line under one roof, you will receive the utmost flexibility when it comes to the door design. We call this Door Plus.

Read more about Door Plus
  • Design and options
  • Service and speed
  • Long durability for Nordic climate
  • Safety and function
  • Maximum dimensions
EAB fabrik

Made in Smålandsstenar, Sweden

All design, production and development take place under our own roof in Smålandsstenar. This allows us to fully adapt dimensions, appearances and automatics to suit your specific circumstances.

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Read more about our promise: Built to Last®

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read more about why our products last

Certification

EAB is certified in accordance with SS-EN 1090-1 and thus fulfils the performance requirements for steel structures. EAB is also certified according to ISO 9001 and ISO 14001.

Reference case

EAB was part of Smart Ytas establishment journey from the start. A journey that began nearly two years ago. Things moved very fast from there. Nine months after the first ground was broken on the first building the premises were sold and ready for occupation. The company has now built a total of three properties, each with 26 premises and an additional building is planned for. Therefore, for Smart Yta it was very important to collaborate with suppliers who offer high quality throughout the entire process and products that last for a long time to come.

Read full case

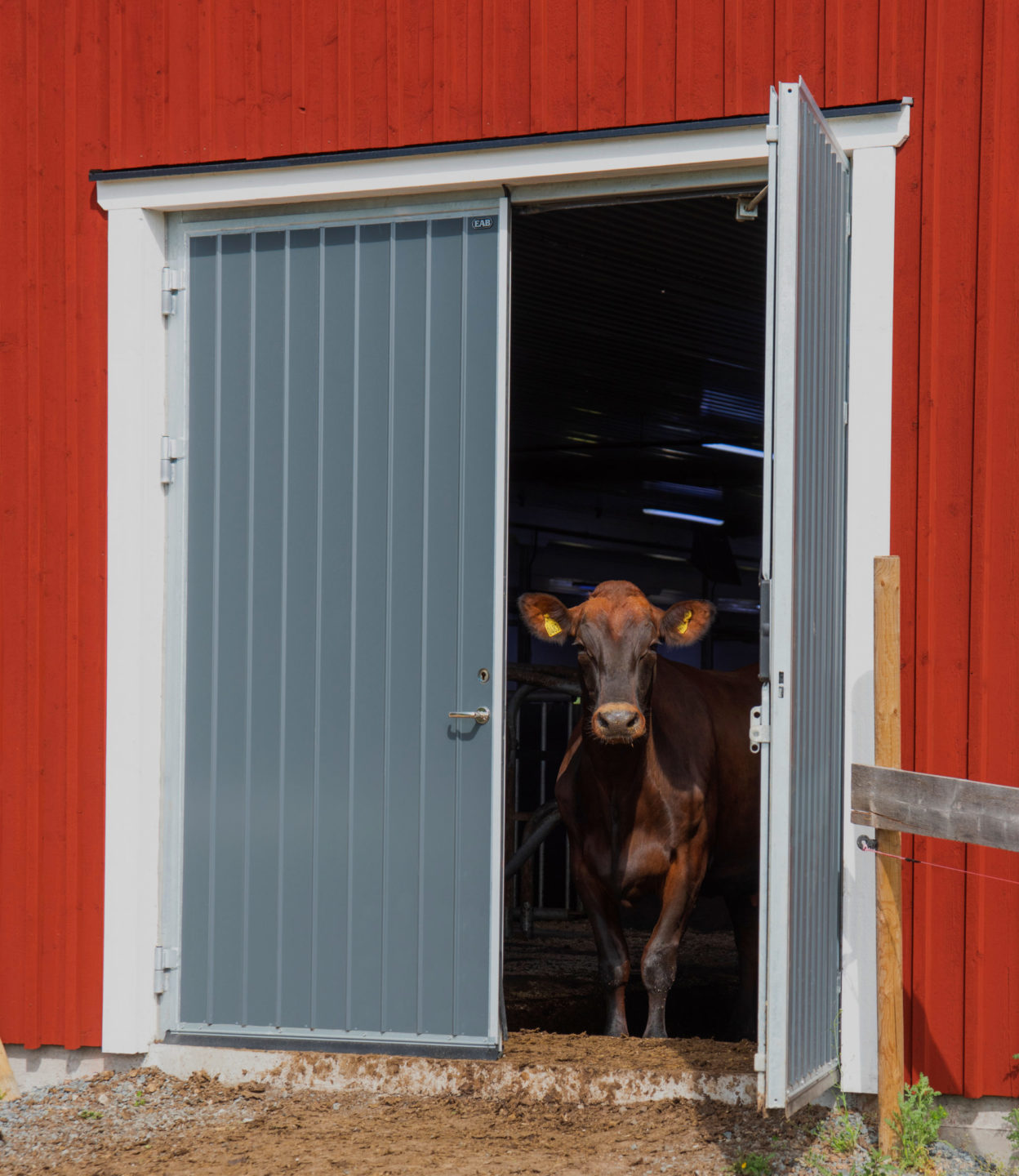

At Alexander and Philip Malmnäs in the idyllic Lilla Hårsabäcks Gård outside of Våxtorp, you will feel right at home. When they moved here in 2008, the plan was to invest in dairy cattle, which they did for the first seven years.

Read full case

Däckcenter in Anderstorp was founded in 1970 by Anders Åstmar, but has been owned by his son Henrik since 2007. They currently have three employees. At Däckcenter they also have a tyre hotel which currently stores tyres for some 900 cars. The premises were built in 1982, with doors from EAB, two manual inward opening folding doors with sheet plate cladding. The installed doors were unusually large for the time, 3.6 metres wide and approximately 5 metres high. Today, they have proved to be the perfect dimensions to also be able to drive in modern lorries, which are considerably higher than those back in the 80’s.

Read full case

Specifications

Fittings and options
  • Plastic bearings, lubrication-free and welded hinges.
  • Door handle EAB Standard
  • Interior lock with espagnolettes; DeJo 55100. The espagnolettes are fitted with padlock loops.
  • Larger side hung doors can be fitted with access doors and ASSA standard lock 310-50 excluding cylinder and handle 640 N. Other types of locks can be fitted upon request.
Sealing and frames

Sealing

All sealing strips are made of EPDM rubber and are attached to the door frames between sections, against door posts and floor.

Frames

EAB manufacture and stock many varieties of U and L profiles and square section tubing, which can be supplied to order.
