Steel sliding doors

Our steel sliding doors are used in machine halls and industry and are based on a quality approach and professional expertise, from drawing to delivery and installation. Have a look at our in-house developed Vision, a fully glazed sliding door that provides maximum light transmission without compromising on safety.

LONG DURABILITY

EAB’s steel sliding doors, which are also available as side hung doors, have a consistent high finish and a very sturdy construction. Few moving parts and heavy-duty fittings provide a long lifespan and minimum need for maintenance.

CHOOSE YOUR METHOD OF OPERATION

There are many operation options, including pushbuttons, radio transmitters, radio receivers, pull cords, code locks, card readers and inductive coils in the floor.

A PROMISE WITH A 10-YEAR GUARANTEE

We know that our doors last and that they deliver what we promise. This is why a 10-year guarantee is always included regardless of the solution you choose.

Insulated sliding door for a quiet and safe working environment

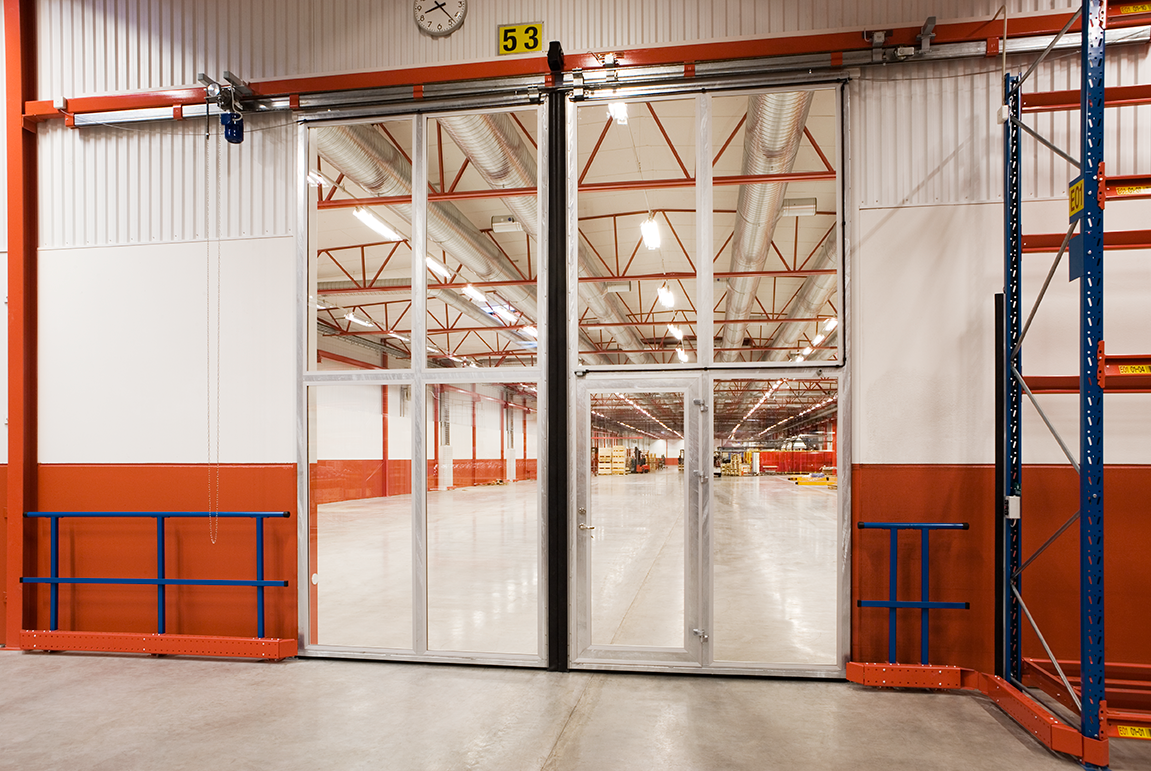

The Vision sliding door, which is completely in steel and glass, is primarily intended for interior industrial environments. It has permanent transparency for fast and safe passage. Glass has also been documented as inhibiting impact. The few moving parts are quiet during operation and require a minimum amount of maintenance.

The door just the way you want it

Because we do our own manufacturing we offer many options with respect to the door design. Insulated or non-insulated? Fully glazed or a combination of painted steel and glass? With or without electric drive? Choose what best suits your premises and do not hesitate to ask us if you need advice and help.

What colour suits you?

A door colour can change the appearance of the entire building. This is an established fact and for this reason we have chosen to offer several different colours as standard. These colours are shown alongside. EAB offers three types of surface treatment for your folding door:

  • Hot dip galvanised door leaf frame and steel cladding.
  • Hot dip galvanised door leaf frame with polyester lacquered steel sheet cladding as per separate range of colours.
  • Paint treatment on hot dip galvanised door leaf frame and steel sheet cladding as per separate paint program.

Fast and smooth automatics

The automatics are frequency controlled, which provides soft but fast movement. Programmable half opening for pedestrians and pallet stackers gives a shorter opening time, which saves energy and reduces noise.

inspirational images and movies

How much does a door cost?
FIND OUR HOW MUCH YOUR SLIDING DOOR COSTS

Quotation
EAB Västbo Transp -3

CE marked industrial doors that fulfil requirements

EAB’s folding doors are CE marked in accordance with the EU Construction Products Regulation and the EU Machinery Directive. All products fulfil the requirements in Swedish door standard SS-EN 13241-1.

Door plus – For more options

When you turn to EAB, you will not receive just a door or a door solution. We will help you every step of the way, from concept to fully assembled product, and with a design team and production line under one roof, you will receive the utmost flexibility when it comes to the door design. We call this Door Plus.

Read more about Door Plus
  • Design and options
  • Service and speed
  • Long durability for Nordic climate
  • Safety and function
  • Maximum dimensions
EAB fabrik

Made in Smålandsstenar, Sweden

All design, production and development take place under our own roof in Smålandsstenar. This allows us to fully adapt dimensions, appearances and automatics to suit your specific circumstances.

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Read more about our promise: Built to Last®

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read more about why our products last

Certification

EAB is certified in accordance with SS-EN 1090-1 and thus fulfils the performance requirements for steel structures. EAB is also certified according to ISO 9001 and ISO 14001.

Reference case

EAB was part of Smart Ytas establishment journey from the start. A journey that began nearly two years ago. Things moved very fast from there. Nine months after the first ground was broken on the first building the premises were sold and ready for occupation. The company has now built a total of three properties, each with 26 premises and an additional building is planned for. Therefore, for Smart Yta it was very important to collaborate with suppliers who offer high quality throughout the entire process and products that last for a long time to come.

Read full case

At Alexander and Philip Malmnäs in the idyllic Lilla Hårsabäcks Gård outside of Våxtorp, you will feel right at home. When they moved here in 2008, the plan was to invest in dairy cattle, which they did for the first seven years.

Read full case

Däckcenter in Anderstorp was founded in 1970 by Anders Åstmar, but has been owned by his son Henrik since 2007. They currently have three employees. At Däckcenter they also have a tyre hotel which currently stores tyres for some 900 cars. The premises were built in 1982, with doors from EAB, two manual inward opening folding doors with sheet plate cladding. The installed doors were unusually large for the time, 3.6 metres wide and approximately 5 metres high. Today, they have proved to be the perfect dimensions to also be able to drive in modern lorries, which are considerably higher than those back in the 80’s.

Read full case

Specifications

Fittings and options
  • Carrier rail in C-profile mounted with console, boggie type wagons are adjustable to the door format and weight.
  • Stearing at the bottom is designed after the floor type.
  • Interior lock with ear for padlock, this applies to hand-operated door.
  • Steel sliding doors can be fitted with access doors and ASSA standard lock 410×50 excluding cylinder.
Glazing and sealing

Glazing

Steel sliding doors are supplied with insulated glazing D4-18, U-value 1,1 mounted in heavy duty strips of naturally oxidised aluminium.

Seals

All sealing strips made from EPDM rubber and are screwed onto the door frame between the door sections, against the frame and against the floor.

Frames

We manufacture door frames from our many different types of U-shaped profiles, L-shaped profiles and square tubes to suit your needs.
