Folding doors

EAB’s hot-dip galvanised folding doors have long been much appreciated industrial doors, thanks to their strength, function and many options with respect to design. Every folding door is manufactured in Smålandsstenar and is made according to your requirements. Your industrial door can either be manually operated or machine operated, have different types of insulation and a colour that suits your specific profile. These advantages have made our industrial doors a natural preferred option, even on architectural drawings.

SOLID WITH FEW MOVING PARTS

EAB’s steel industrial doors have solid fittings, a high-quality finish and a solid construction with few moving parts. This gives the door superior durability with minimum maintenance.

MANUAL OR MOTOR-POWERED

EAB’s steel folding doors can be constructed for either manual operation or electric motor-powered.

A PROMISE WITH A 10-YEAR GUARANTEE

We know that our doors last and that they deliver what we promise. This is why a 10-year guarantee is always included regardless of the solution you choose.

Choose your design

Our folding doors are frame built from welded steel profiles in Aluzinc sheet that tolerates tough blows and can be realigned. The doors are manufactured with 2, 3, 4, 5 or 6 sections. Where you can choose the solution that best suits you and your company.

Find inspiration for your folding door

vikport maskindriven

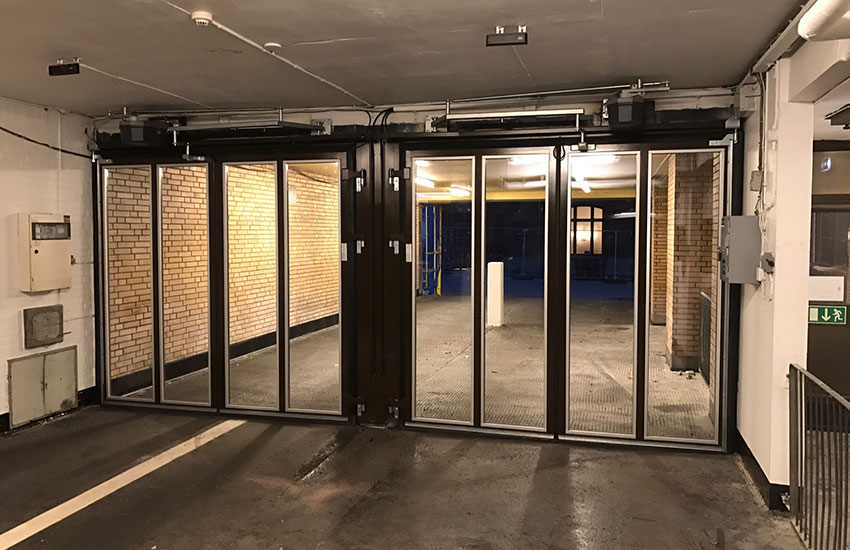

Automatic folding doors with proven technology

Our motor-powered folding doors have impulse automation units that have been specially designed by DAAB for controlling doors, gates and barriers. Additional cards can easily be connected for traffic lights, gateways and limited opening. The machine operation is supplied prepared for connection to devices such as a pushbutton box, key control box, radio receiver, card reader and code lock.

Door leaves and cladding

The frames on our fire doors are comprised of welded, galvanised square profiles and are clad with Aluzinc or polyester lacquered profiled steel sheet. The steel cladding is screwed onto the door frame using our own special screws, which means that steel sheet is easy to replace if it becomes damaged.

From non-insulated to high insulated

Insulation is available as interleaved mineral wool insulation with a thickness of either 40 or 60 mm. For those who require a high insulation door, we manufacture them with a thermal break in the cold bridge and mineral wool insulation with a thickness of either 45 or 65 mm. We call the high insulation type thermal folding doors. Naturally, you can also choose a fully non-insulated solution with steel sheet only on the exterior.

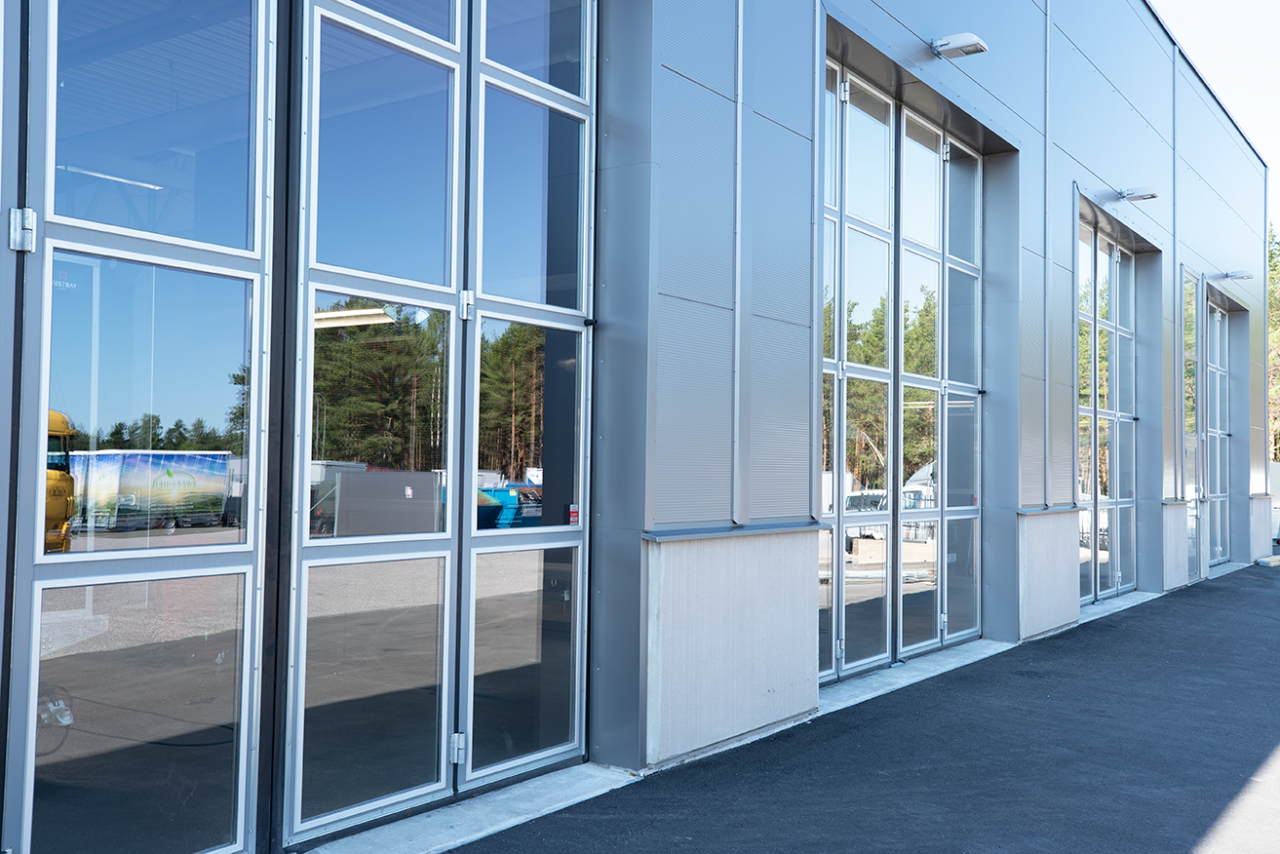

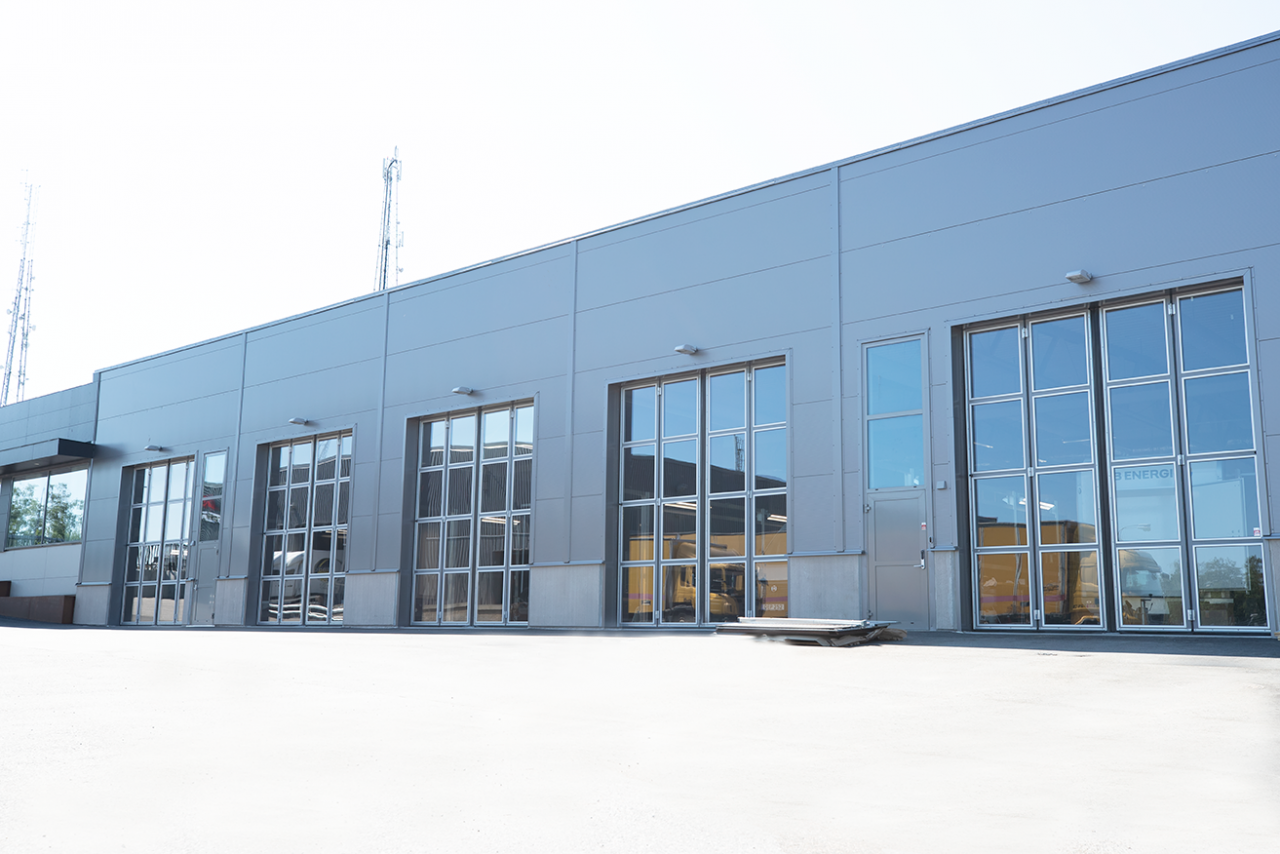

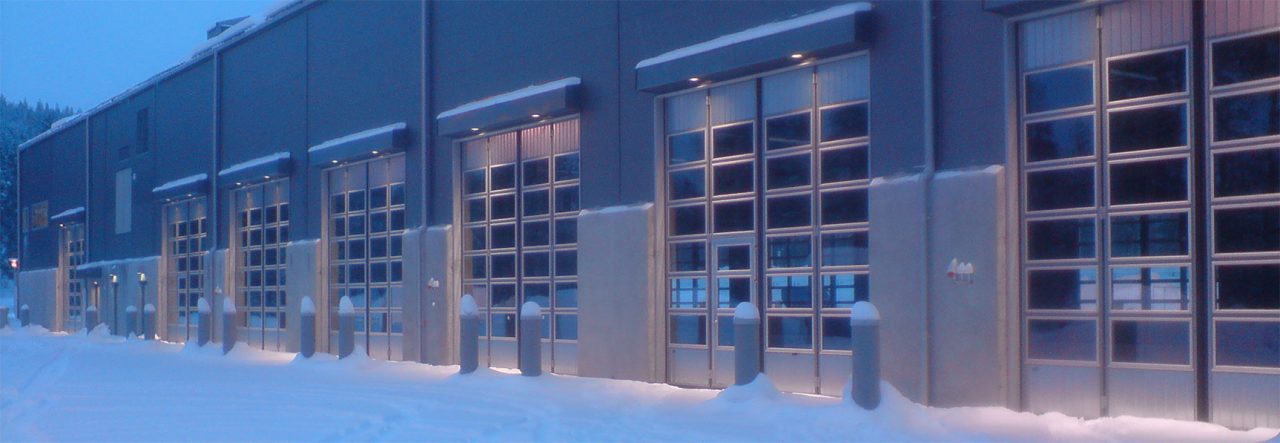

Let the light in with a glazed door

Choose among one or more glazed sections, or why not even a fully glazed door for optimal light transmission. The folding doors are supplied with a D4-18 insulated pane, with a U-value of 1.1, which is fitted in heavy-duty strips of naturally anodised aluminium. Other types of glazing can be fitted upon request.

portar

When function meets design

At EAB we create concrete proof every day that a durable and functional door does not need to be boring. With 50 years’ experience in door manufacturing, we know the art of combining design, function and durability. Read more about our Designline concept, which gives you unlimited options to customise your door.

Customise your door

What colour suits you?

A door colour can change the appearance of the entire building. This is an established fact and for this reason we have chosen to offer several different colours as standard. These colours are shown alongside. EAB offers three types of surface treatment for your folding door:

  • Option 1: Hot dip galvanised door leaf frame and steel cladding.
  • Option 2: Hot dip galvanised door leaf frame with polyester lacquered steel sheet cladding as per separate range of colours.
  • Option 3: Paint treatment on hot dip galvanised door leaf frame and steel sheet cladding as per separate paint program.

For a homogenous and warm feel

The options are endless when it comes to doors from EAB and there are several ways to have the door fit in with the surrounding environment.

Here you can see how the door can be clad in wood and the impact is has on the building appearance. Watch the entire film here.

inspirationAL images

Vikport helglasad
Vikport antracit
Vikport helglasad bilhall
Vikport
vikport 3 rader glas

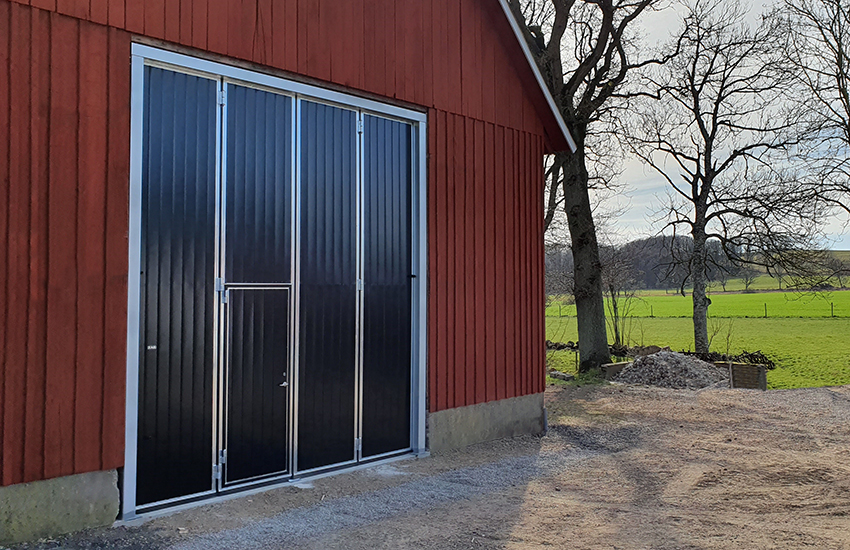

Vikport med gångdörr

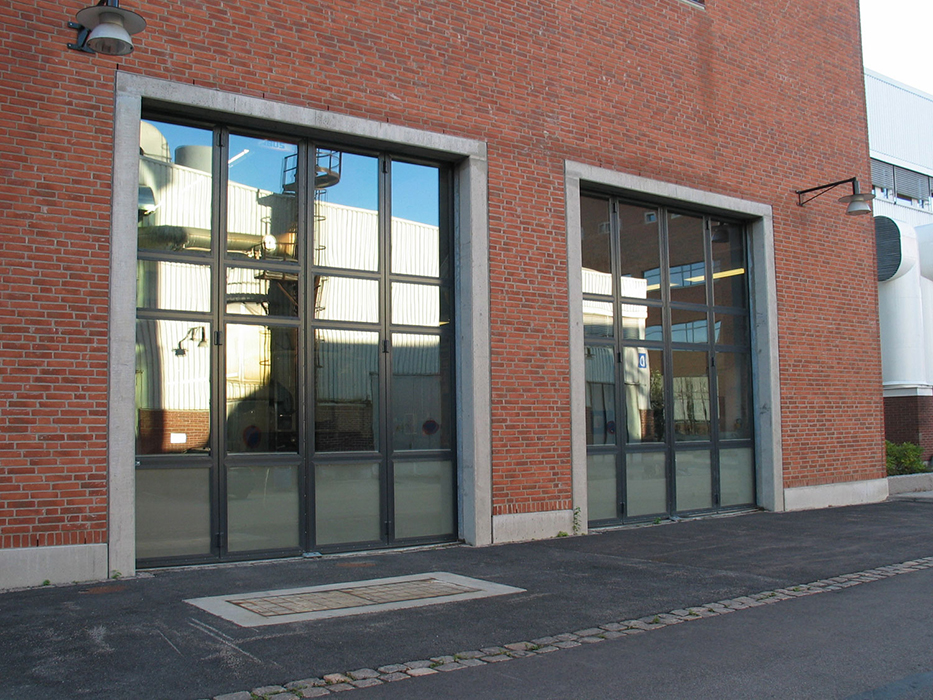

Helglasade vikportar
Helglasade portar
slagportar och vikportar
Vikportar med gångdör
Vikportar med tre

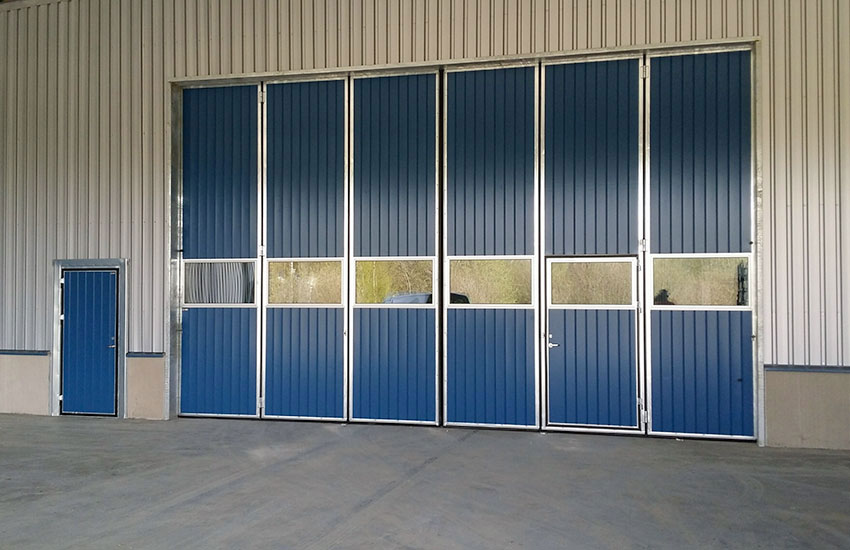

Blå vikportar med en rad glas och gångdörr vid sidan
Gröna vikportar och slagportar
Träbeklädda vikportar

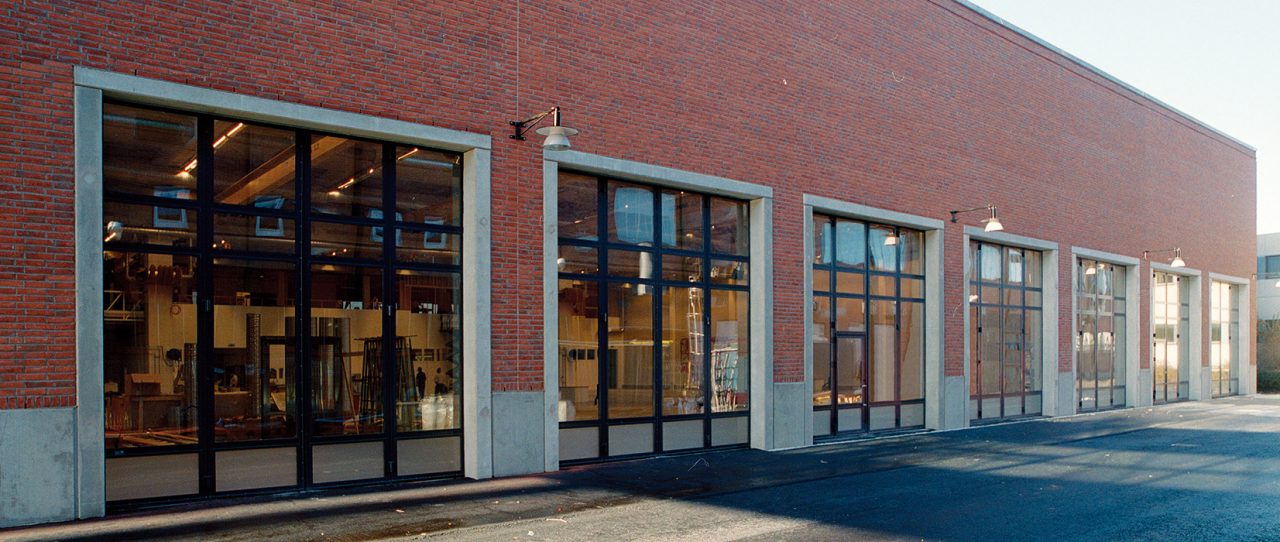

Helglasade vikportar Designline

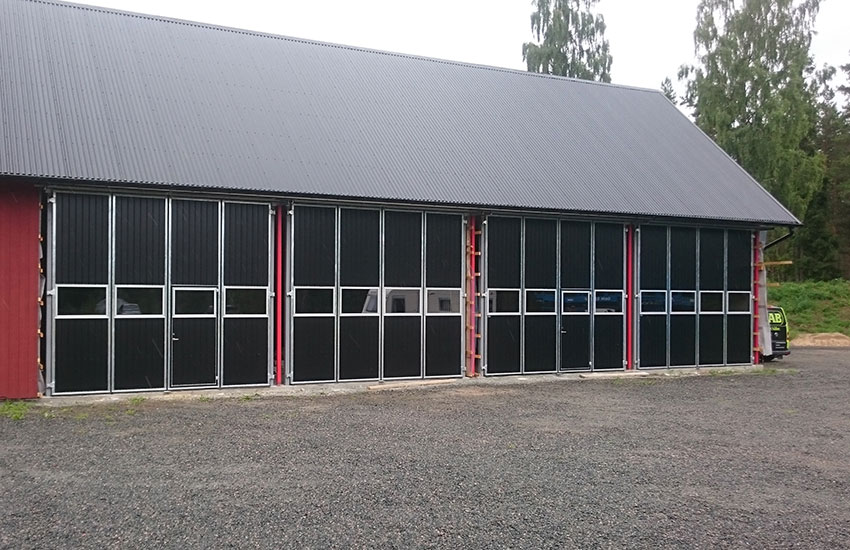

Svarta vikportar med en rad glas
Svarta portar med infälld gångdörr

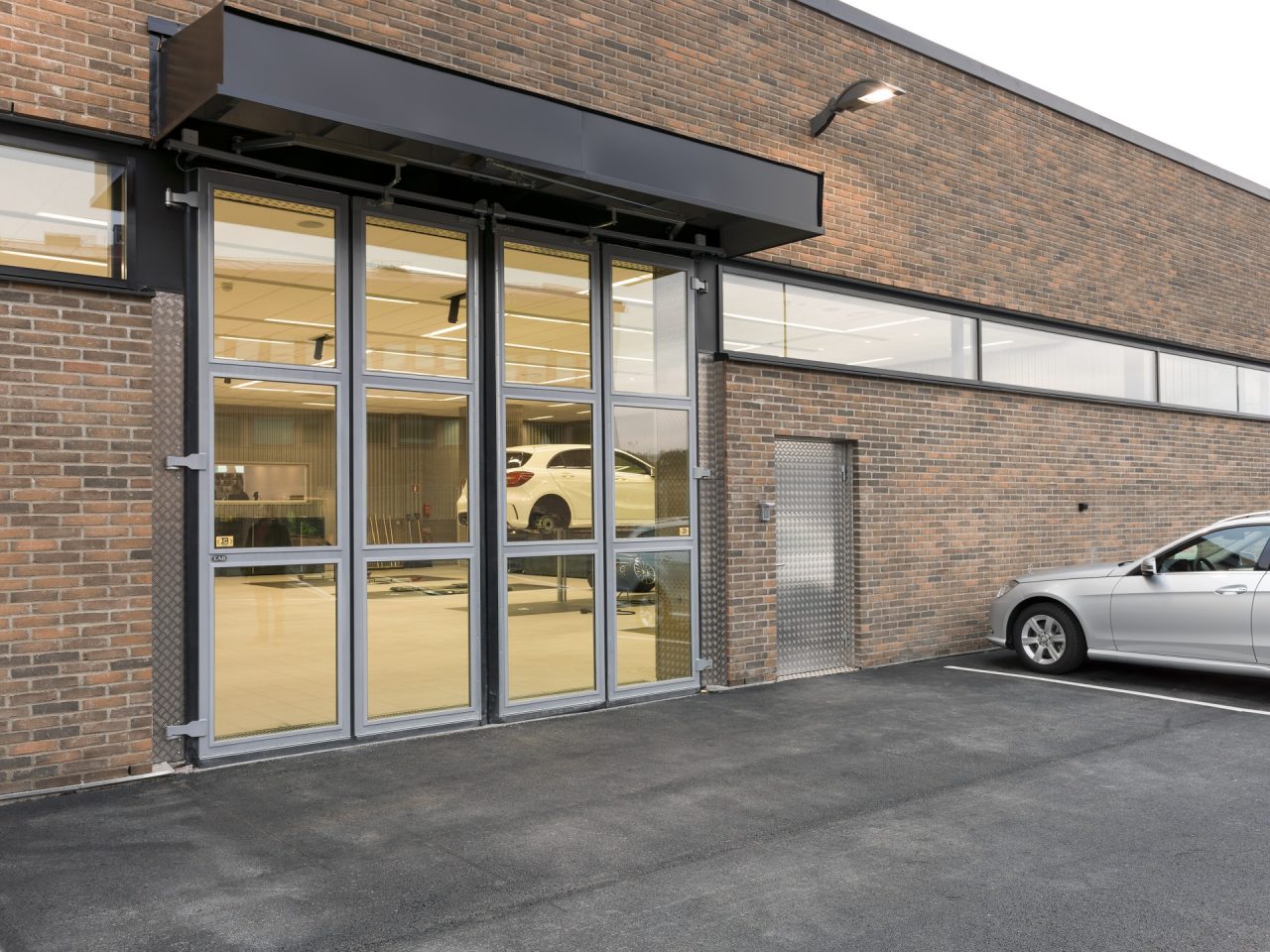

Helglasade vikportar på företag

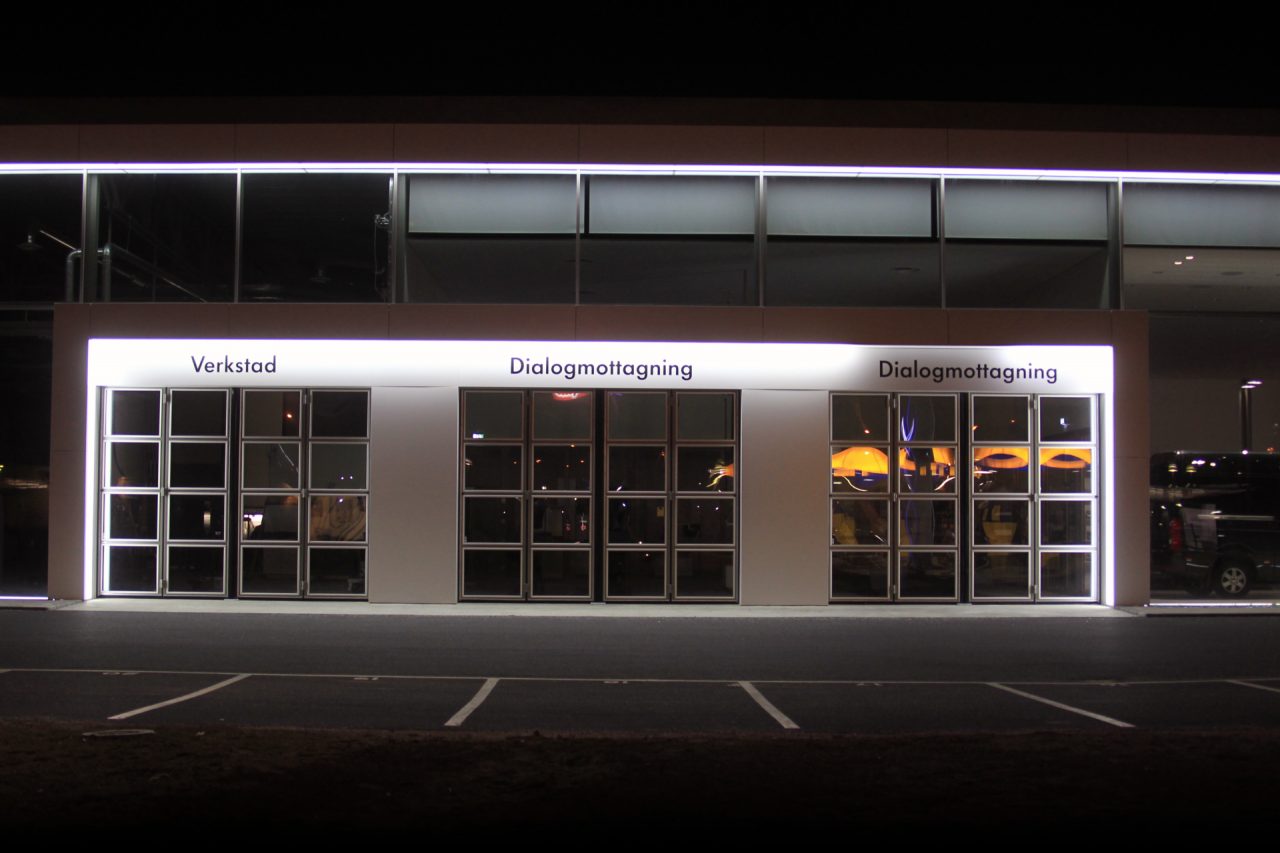

Helglasade portar med eldrift
Designade portar i glas
Helglasade portar med elfdrift i parkeringshus
Infälld gångdörr helglasad
Vikport helglasad

HOW MUCH DOES A FOLDING DOOR COST? ESTIMATE THE PRICE OF YOUR DOOR

Quotation
EAB Västbo Transp -3

CE marked industrial doors that fulfil requirements

EAB’s folding doors are CE marked in accordance with the EU Construction Products Regulation and the EU Machinery Directive. All products fulfil the requirements in Swedish door standard SS-EN 13241-1.

Door plus – For more options

When you turn to EAB, you will not receive just a door or a door solution. We will help you every step of the way, from concept to fully assembled product, and with a design team and production line under one roof, you will receive the utmost flexibility when it comes to the door design. We call this Door Plus.

Read more about Door Plus
  • Design and options
  • Service and speed
  • Long durability for Nordic climate
  • Safety and function
  • Maximum dimensions
EAB fabrik

Made in Smålandsstenar, Sweden

All design, production and development take place under our own roof in Smålandsstenar. This allows us to fully adapt dimensions, appearances and automatics to suit your specific circumstances.

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Read more about our promise: Built to Last®

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read more about why our products last

Certification

EAB is certified in accordance with SS-EN 1090-1 and thus fulfils the performance requirements for steel structures. EAB is also certified according to ISO 9001 and ISO 14001.

Reference case

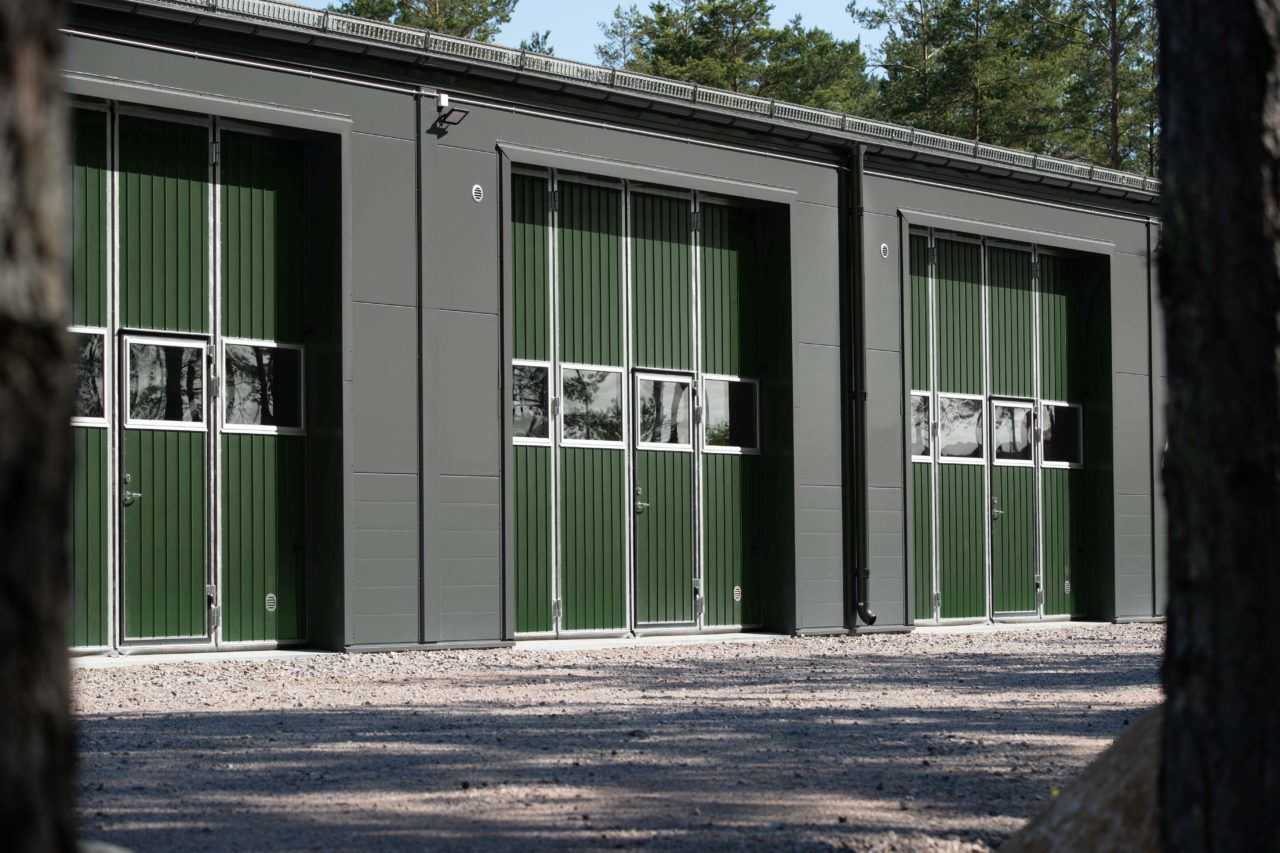

EAB was part of Smart Ytas establishment journey from the start. A journey that began nearly two years ago. Things moved very fast from there. Nine months after the first ground was broken on the first building the premises were sold and ready for occupation. The company has now built a total of three properties, each with 26 premises and an additional building is planned for. Therefore, for Smart Yta it was very important to collaborate with suppliers who offer high quality throughout the entire process and products that last for a long time to come.

Read full case

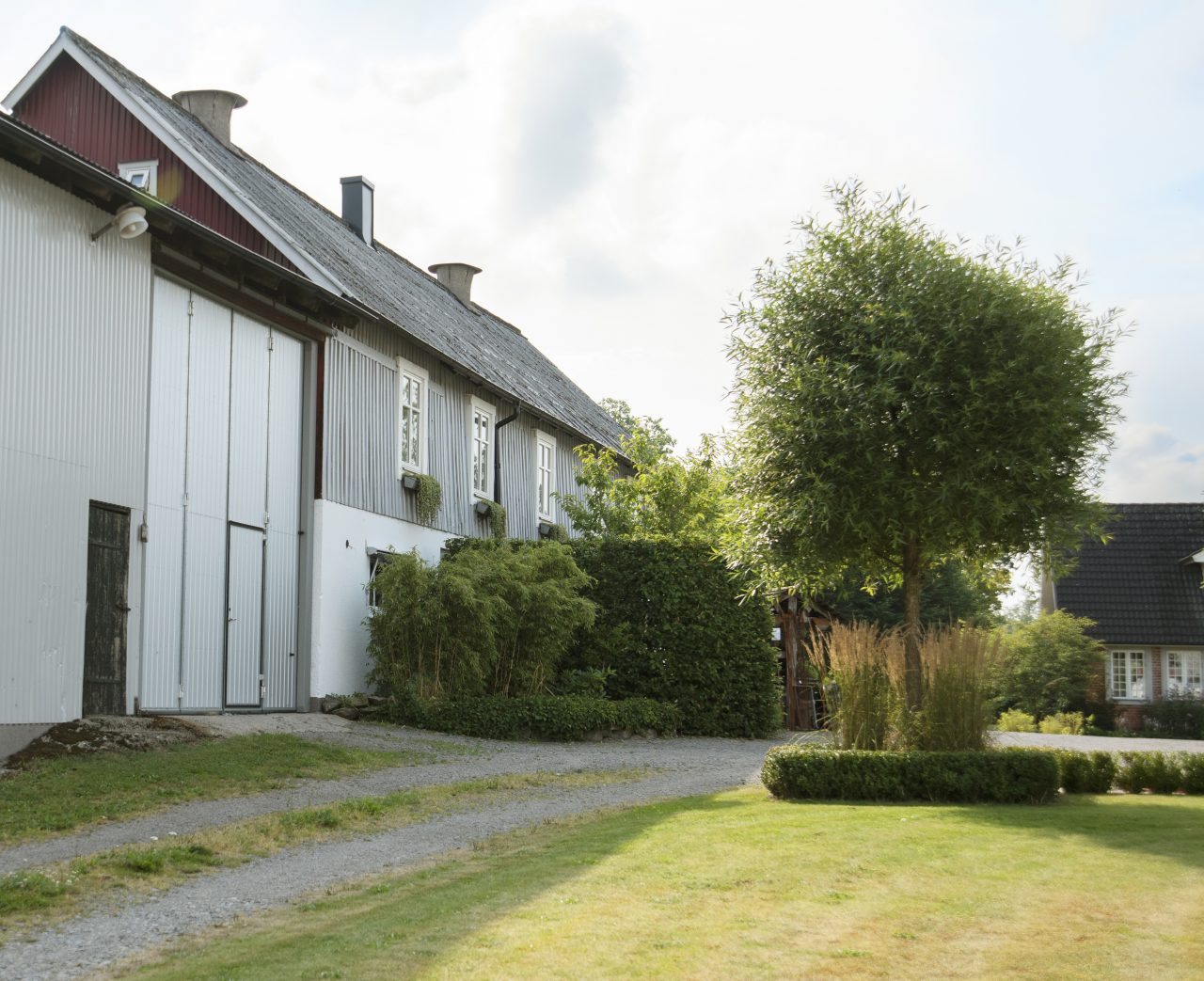

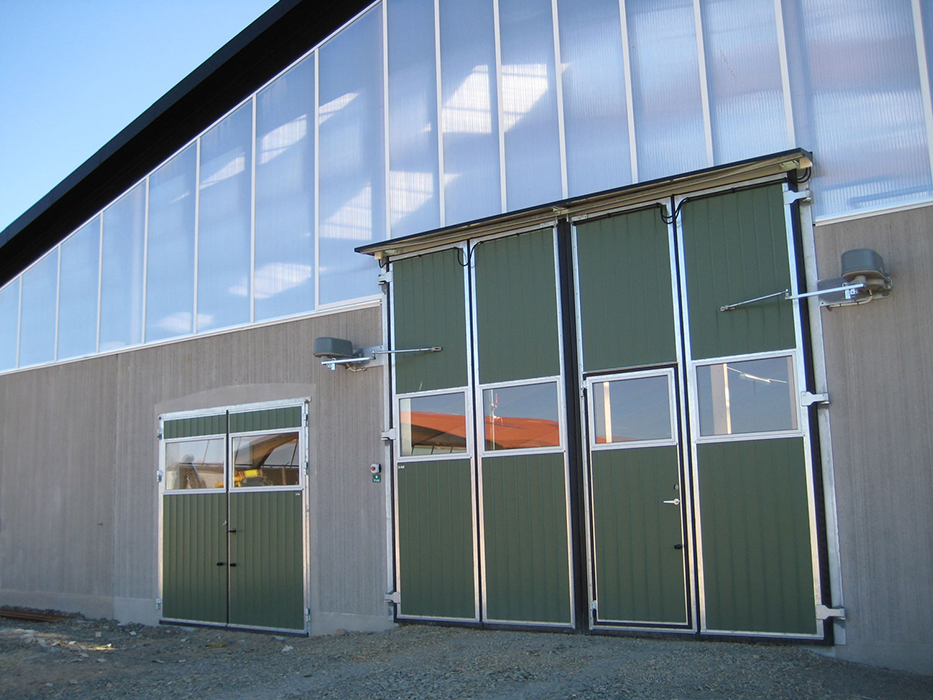

At Alexander and Philip Malmnäs in the idyllic Lilla Hårsabäcks Gård outside of Våxtorp, you will feel right at home. When they moved here in 2008, the plan was to invest in dairy cattle, which they did for the first seven years.

Read full case

Däckcenter in Anderstorp was founded in 1970 by Anders Åstmar, but has been owned by his son Henrik since 2007. They currently have three employees. At Däckcenter they also have a tyre hotel which currently stores tyres for some 900 cars. The premises were built in 1982, with doors from EAB, two manual inward opening folding doors with sheet plate cladding. The installed doors were unusually large for the time, 3.6 metres wide and approximately 5 metres high. Today, they have proved to be the perfect dimensions to also be able to drive in modern lorries, which are considerably higher than those back in the 80’s.

Read full case

Specification

Fittings and options
  • Plastic bearings, lubrication-free and welded hinges.
  • Ball bearing guide or carrier bracket that runs in C profiles.
  • Stearing heal on floor in the door centre.
  • Interior lock with espagnolettes; DeJo 55100. The espagnolettes are fitted with padlock loops.

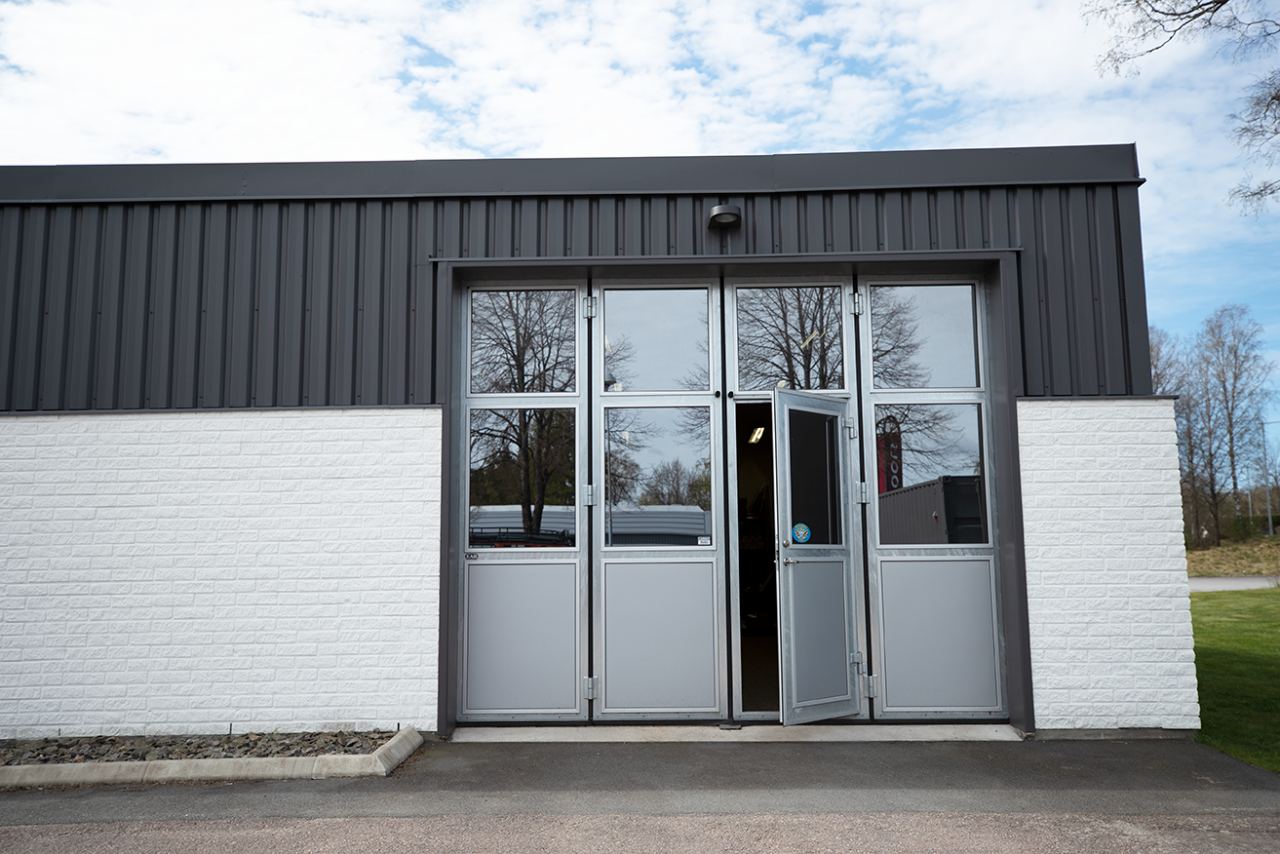

  • Folding doors can be fitted with access doors and an ASSA standard lock 310-50 excluding cylinder and handle 640 N. Other types of locks can be fitted upon request.
Glazing and sealing

Glazing

Folding doors are supplied with insulated glazing D4-18, U-value 1,1 mounted in heavy duty strips of naturally oxidised aluminium. Other types of glazing can be fitted upon request.

Seals

All sealing strips made from EPDM rubber and are screwed onto the door frame between the door sections, against the frame and against the floor.
