Folding security doors

EAB’s manual folding security doors in Aluzinc sheet are well-known for their strength and reliability. Every door is manufactured at our own factory in Smålandsstenar under careful quality control. Just like our other products you have many options when it comes to dimensions, surface treatment, glazed sections and much more.

BUILT TO MEET REQUIREMENTS

EAB’s folding security doors fulfil the requirements for burglary protected industrial doors.

TOLERATES TOUGH BLOWS AND REALIGNMENT

Our folding doors are frame built from welded steel profiles in Aluzinc sheet that tolerates tough blows and can be realigned. They are manufactured with 2, 3, 4, 5 or 6 sections and are designed for manual operation. Maximum dimensions are 6,000 x 8,000 mm.

A PROMISE WITH A 10-YEAR GUARANTEE

We know that our doors last and that they deliver what we promise. This is why a 10-year guarantee is always included regardless of the solution you choose.

Burglary protection classed doors

EAB’s security folding doors security doors fulfil the requirement as burglary protection industrial doors as per SSF 1074 version 1 class 2, where it is secured with at least 2 padlocks, minimum class 3 according to SSFN 014. The doors are CE marked in accordance with the EU Construction Products Regulation and fulfil the requirements in Swedish standard SS-EN 13241-1.

Choose your design

Our folding doors are frame built from welded steel profiles in Aluzinc sheet that tolerates tough blows and can be realigned. The doors are manufactured with 2, 3, 4, 5 or 6 sections, where you can choose the solution that best suits you. Maximum dimensions are 6,000 x 8,000 mm.

Door leaves and cladding

The frames on our fire doors are comprised of welded, galvanised square profiles and are clad with Aluzinc or polyester lacquered profiled steel sheet. The steel cladding is screwed onto the door frame using our own special screws, which means that steel sheet is easy to replace if it becomes damaged.

Choose your insulation

For security folding doors interleaved mineral wool insulation is used with a thickness of either 40 or 60 mm.

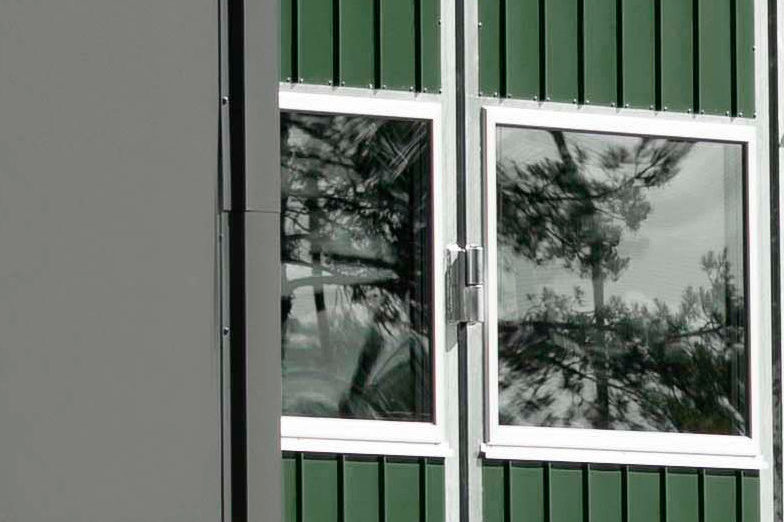

Let the light in but keep burglars out

When choosing a security door from EAB you do not need to compromise on appearance. Choose among one or more glazed sections for optimal light transmission. Doors are supplied with thermal P5A-glazed panes, which are mounted in steel frames.

What colour suits you and your business?

A door colour can change the appearance of the entire building. This is an established fact and for this reason we have chosen to offer several different colours as standard. These colours are shown alongside. EAB offers three types of surface treatment for your folding door:

  • Option 1: Hot dip galvanised door leaf frame and steel cladding.
  • Option 2: Hot dip galvanised door leaf frame with polyester lacquered steel sheet cladding as per separate range of colours.
  • Option 3: Paint treatment on hot dip galvanised door leaf frame and steel sheet cladding as per separate paint program.





When function meets design

At EAB we create concrete proof every day that a durable and functional door does not need to be boring. With 50 years’ experience in door manufacturing, we know the art of combining design, function and durability. Read more about our Designline concept, which gives you unlimited options to customise your door.

Customise your door

inspirATIONAL IMAGES

Vikport antracit

HOW MUCH DOES A DOOR COST?
FIND OUT HOW MUCH YOUR FOLDING SECURITY DOOR COSTS

Quotation
EAB Västbo Transp -3

CE marked industrial doors that fulfil requirements

EAB’s folding doors are CE marked in accordance with the EU Construction Products Regulation and the EU Machinery Directive. All products fulfil the requirements in Swedish door standard SS-EN 13241-1.

Door plus – For more options

When you turn to EAB, you will not receive just a door or a door solution. We will help you every step of the way, from concept to fully assembled product, and with a design team and production line under one roof, you will receive the utmost flexibility when it comes to the door design. We call this Door Plus.

Read more about Door Plus
  • Design and options
  • Service and speed
  • Long durability for Nordic climate
  • Safety and function
  • Maximum dimensions
EAB fabrik

Made in Smålandsstenar, Sweden

All design, production and development take place under our own roof in Smålandsstenar. This allows us to fully adapt dimensions, appearances and automatics to suit your specific circumstances.

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Read more about our promise: Built to Last®

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read more about why our products last

Certification

EAB is certified in accordance with SS-EN 1090-1 and thus fulfils the performance requirements for steel structures. EAB is also certified according to ISO 9001 and ISO 14001.

Reference case

EAB was part of Smart Ytas establishment journey from the start. A journey that began nearly two years ago. Things moved very fast from there. Nine months after the first ground was broken on the first building the premises were sold and ready for occupation. The company has now built a total of three properties, each with 26 premises and an additional building is planned for. Therefore, for Smart Yta it was very important to collaborate with suppliers who offer high quality throughout the entire process and products that last for a long time to come.

Read full case

At Alexander and Philip Malmnäs in the idyllic Lilla Hårsabäcks Gård outside of Våxtorp, you will feel right at home. When they moved here in 2008, the plan was to invest in dairy cattle, which they did for the first seven years.

Read full case

Däckcenter in Anderstorp was founded in 1970 by Anders Åstmar, but has been owned by his son Henrik since 2007. They currently have three employees. At Däckcenter they also have a tyre hotel which currently stores tyres for some 900 cars. The premises were built in 1982, with doors from EAB, two manual inward opening folding doors with sheet plate cladding. The installed doors were unusually large for the time, 3.6 metres wide and approximately 5 metres high. Today, they have proved to be the perfect dimensions to also be able to drive in modern lorries, which are considerably higher than those back in the 80’s.

Read full case

Specifications

Fittings and options
  • Plastic bearings, lubrication-free and welded hinges.
  • Ball bearing guide or carrier bracket that runs in C profiles.
  • Stearing heel on floor in the door centre.
  • Interior lock with espagnolettes; DeJo 55100. The espagnolettes are fitted with padlock loops.
  • Safety doors can not be delivered with an access door.
Sealing and frames

Sealing

All sealing strips are made of EPDM rubber and are attached to the door frames between sections, against door posts and floor.

Door cases and posts

EAB manufacture and stock many varieties of U and L profiles and square section tubing, which can be supplied to order.
