Thermal doors

Frame-built and high insulation folding doors side hung and doors suit all environments where high demands are placed on high insulation doors. The stable welded and hot dip zinc galvanised steel frame enables maximum glazing widths. All our doors are manufactured according to your specific requirements.


EAB’s thermal doors are frame built, tolerate tough blows and can be realigned. They are manufactured with 2, 3, 4, 5 or 6 sections and are designed for manual or electric operation.


Thermal doors are available with a 5 mm cold-breaking thermal layer as well interleaved mineral wool insulation.


We know that our doors last and that they deliver what we promise. This is why a 10-year guarantee is always included regardless of the solution you choose.

Högisolerad port termo

Tolerates tough conditions, snow and bitter cold

Thermal doors are available with a 5 mm cold-breaking thermal layer as well interleaved mineral wool insulation.

Choose your design

Our folding doors are frame built from welded steel profiles in hot dip galvanised sheet that tolerates tough blows and can be realigned. The doors are manufactured with 2, 3, 4, 5 or 6 sections, where you can choose the solution that best suits you.

Automatic folding doors with proven technology

Our motor-powered folding doors have impulse automation units that have been specially designed by DAAB for controlling doors, gates and barriers. Additional cards can easily be connected for traffic lights, gateways and limited opening. The machine operation is supplied prepared for connection to devices such as a pushbutton box, key control box, radio receiver, card reader and code lock.

Door leaves and cladding

The frames on our fire doors are comprised of welded, galvanised square profiles and are clad with hot dip galvanised or polyester lacquered profiled steel sheet. The steel cladding is screwed onto the door frame using our own special screws, which means that steel sheet is easy to replace if it becomes damaged.

Let the light in but the cold out

When choosing a high insulation door from EAB you do not need to compromise on appearance. Choose among one or more glazed sections, or why not even a fully glazed door for optimal light transmission. The folding doors are supplied with a D4-18 insulated pane, with a U-value of 1.1, which is fitted in heavy-duty strips of naturally anodised aluminium. Other types of glazing can be fitted upon request.

What colour suits you and your business?

A door colour can change the appearance of the entire building. This is an established fact and for this reason we have chosen to offer several different colours as standard. These colours are shown alongside. EAB offers three types of surface treatment for your folding door:

  • Option 1: Hot dip galvanised door leaf frame and steel cladding.
  • Option 2: Hot dip galvanised door leaf frame with polyester lacquered steel sheet cladding as per separate range of colours.
  • Option 3: Paint treatment on hot dip galvanised door leaf frame and steel sheet cladding as per separate paint program.



EAB Västbo Transp -3

CE marked industrial doors that fulfil requirements

EAB’s folding doors are CE marked in accordance with the EU Construction Products Regulation and the EU Machinery Directive. All products fulfil the requirements in Swedish door standard SS-EN 13241-1.

Door plus – For more options

When you turn to EAB, you will not receive just a door or a door solution. We will help you every step of the way, from concept to fully assembled product, and with a design team and production line under one roof, you will receive the utmost flexibility when it comes to the door design. We call this Door Plus.

Read more about Door Plus
  • Design and options
  • Service and speed
  • Long durability for Nordic climate
  • Safety and function
  • Maximum dimensions

Built to Last®

Built to Last is the promise we give our customers, employees, suppliers and collaborative partners about the solid construction of our products.

Read more about our promise: Built to Last®

Engineering Principles

EAB’s Engineering Principles describe in detail what makes the solutions last from a long-term perspective.

Read more about why our products last


EAB is certified in accordance with SS-EN 1090-1 and thus fulfils the performance requirements for steel structures. EAB is also certified according to ISO 9001 and ISO 14001.

Reference case

EAB was part of Smart Ytas establishment journey from the start. A journey that began nearly two years ago. Things moved very fast from there. Nine months after the first ground was broken on the first building the premises were sold and ready for occupation. The company has now built a total of three properties, each with 26 premises and an additional building is planned for. Therefore, for Smart Yta it was very important to collaborate with suppliers who offer high quality throughout the entire process and products that last for a long time to come.

Read full case

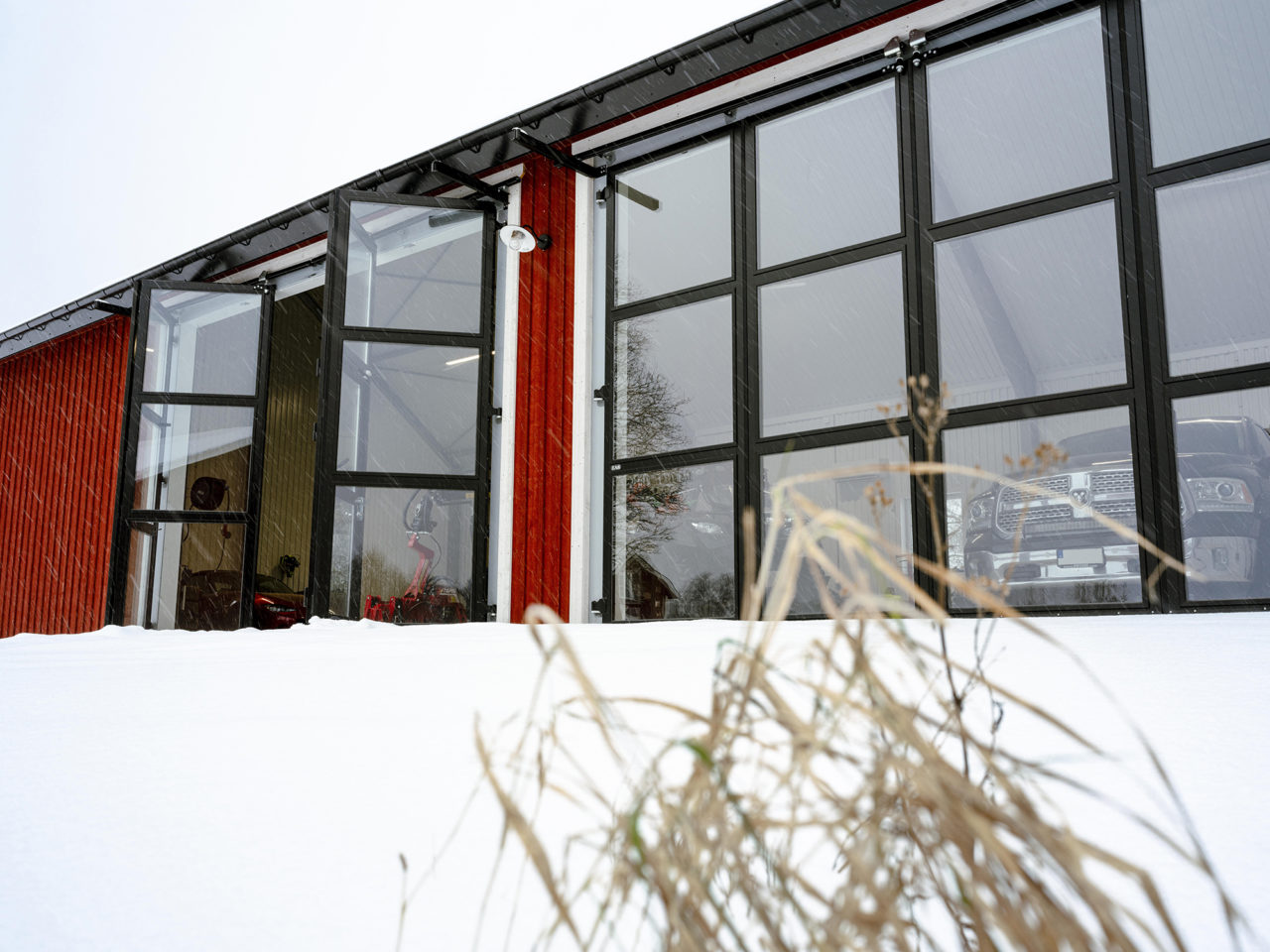

At Alexander and Philip Malmnäs in the idyllic Lilla Hårsabäcks Gård outside of Våxtorp, you will feel right at home. When they moved here in 2008, the plan was to invest in dairy cattle, which they did for the first seven years.

Read full case

Däckcenter in Anderstorp was founded in 1970 by Anders Åstmar, but has been owned by his son Henrik since 2007. They currently have three employees. At Däckcenter they also have a tyre hotel which currently stores tyres for some 900 cars. The premises were built in 1982, with doors from EAB, two manual inward opening folding doors with sheet plate cladding. The installed doors were unusually large for the time, 3.6 metres wide and approximately 5 metres high. Today, they have proved to be the perfect dimensions to also be able to drive in modern lorries, which are considerably higher than those back in the 80’s.

Read full case


Fittings and options
teollisuusovet, yksityiskohta saranoista
  • Plastic bearings, lubrication-free and welded hinges.
  • Ball bearing guide or carrier bracket that runs in C profiles.
  • Stearing heal on floor in the door centre.
  • Interior lock with espagnolettes; DeJo 55100. The espagnolettes are fitted with padlock loops.
  • Thermal doors can be fitted with access doors and an ASSA standard lock 310-50 excluding cylinder and handle 640 N. Other types of locks can be fitted upon request.
Seals and frames


All sealing strips made from EPDM rubber and are screwed onto the door frame between the door sections, against the frame and against the floor.


We manufacture door frames from our many different types of U-shaped profiles, L-shaped profiles and square tubes to suit your needs.


With our extensive experience from all types of doors we would be pleased to help you find the perfect solution to suit your needs.
